AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

Ask A Question

Description & Features

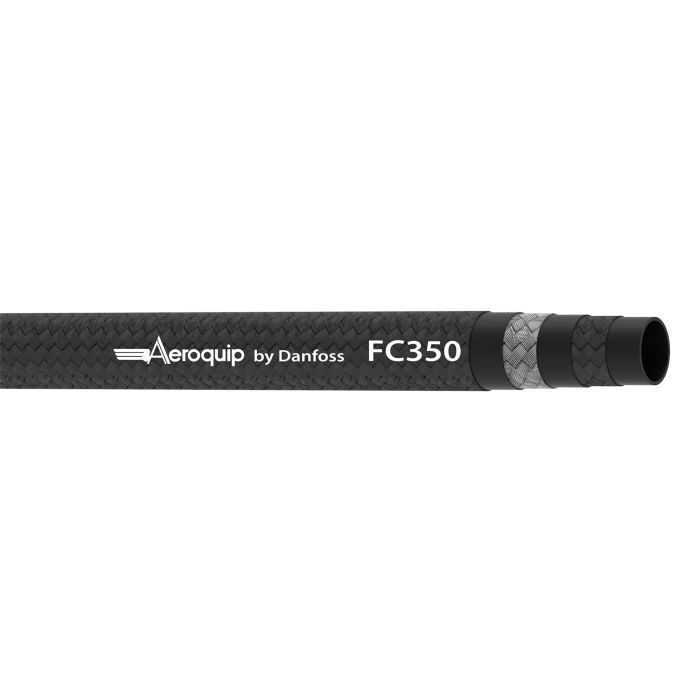

The AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI by Danfoss Power Solutions offers versatile use in air, gasoline, fuel, lubricating oils, and coolants. Constructed with an AQP elastomer tube, reinforced with a single wire braid and a polyester inner braid, it ensures robust performance.

The hose features a black polyester textile braided cover and operates between -55deg;F to +300deg;F, with air handling up to +250deg;F.

Engineered for demanding industrial applications, it supports a maximum operating pressure of 400 PSI, with a minimum bend radius of 3.5 inches and vacuum service of 15 inches Hg. The outer diameter of the hose is 1.23 inches.

Reel quantities range from 180 to 240 feet, making it adaptable to various setup requirements.

Supplier Part Number: FC350-16RL

MPN: C1CR80

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.88
Hose O.D.
1.23
Maximum Operating Pressure
400
Minimum Bend Radius
3.50
Minimum Bend Radius
3.5
Reel Qty (ft)
180-240
Supplier Part Number
FC350-16RL
Alternate Part Numbers
Alternate Part Number C1CR80, Alternate Part Number FC350-16RL
Product Weight
1.05 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.19 Inch ID, Up to 2000.00 PSI

FC350-04 AQP Engine & Air Brake Hose

0.19

0.52

2000

0.75

28

500-650

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

FC350-06 AQP Engine & Air Brake Hose

0.31

0.68

1500

1.25

28

320-420

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

FC350-08 AQP Engine & Air Brake Hose

0.41

0.77

1250

1.75

28

450-600

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.50 Inch ID, Up to 1250.00 PSI

FC350-10 AQP Engine & Air Brake Hose

0.5

0.94

1250

2.25

28

310-400

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.62 Inch ID, Up to 750.00 PSI

FC350-12 AQP Engine & Air Brake Hose

0.62

1.08

750

2.75

20

230-300

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC350-16 AQP Engine & Air Brake Hose

0.88

1.23

400

3.5

15

180-240

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

FC350-20 AQP Engine & Air Brake Hose

1.12

1.5

300

4.5

15

120-160

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC350-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

100-150

Product Questions & Answers (4)

Question by: Billy T on Nov 5, 2025, 12:32 PM
Trying to swap out a worn hose, what size is this one again, inside and outside?
Answer by: Customer Support on Nov 7, 2025, 10:29 AM
For sizing, the inside diameter is 0.88 inch and the outside diameter is 1.23 inch.
Question by: Jimmy W on May 5, 2025, 1:57 PM
what's the temp range on this hose? got some coolant and oil lines running through a pretty hot engine bay and want to make sure it ain't gonna give out on me
Answer by: Customer Support on May 7, 2025, 6:06 AM
For most fluids like fuel, oil, and coolants, this hose holds up from -55°F all the way to 300°F. Air service is the one exception, where the upper limit drops to 250°F. Engine bay heat near those lines should fall well within the acceptable range as long as you're not pushing past those thresholds.
Question by: Travis W on Aug 16, 2025, 3:06 PM
What kind of stuff can this hose handle without breaking down?
Answer by: Customer Support on Aug 18, 2025, 1:32 PM
This AQP elastomer tube is made to stand up to air, gasoline, fuel, lubricating oils, and coolants.
Question by: Jimmy E on Nov 17, 2025, 8:17 PM
hose rated for air brake lines on a heavy truck, or is it more of a general engine hose?
Answer by: Customer Support on Nov 18, 2025, 8:18 PM
Air brake duty is exactly what this hose was built for. It meets FMVSS106, which is the federal standard specifically covering brake hoses for motor vehicles. Beyond air brake use, it also handles fuel, gasoline, lubricating oils, and coolants, so it pulls double duty across a lot of underhood applications. The 400 PSI max operating pressure and the temperature range of negative 55 up to 300 degrees F give it enough headroom for demanding engine bay environments.
