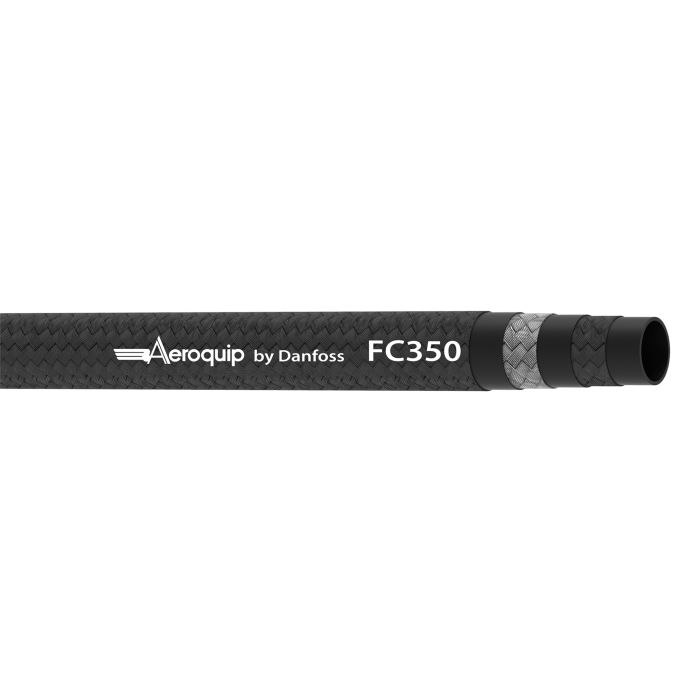

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

Ask A Question

Description & Features

The AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI by Danfoss Power Solutions (II LLC Aeroquip), offers a versatile solution for a range of industrial applications including air, gasoline, fuel, lubricating oils, and coolants. Constructed with an AQPreg; elastomer tube, it features a polyester inner braid and a single wire braid reinforcement, finished with a black polyester textile braided cover.

With a minimum bend radius of 4.5 inches, this hose ensures flexibility and durability under demanding conditions.

The hose can withstand a temperature range from -55deg;F to +300deg;F, making it suitable for extreme environments.

The maximum operating pressure is 300 PSI, and it offers vacuum service up to 15 inches Hg.

Reel quantities range from 120 to 160 feet, providing ample length for extensive setups.

MPN: EAR99

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
1.12
Hose O.D.
1.50
Maximum Operating Pressure
300
Minimum Bend Radius
4.50
Minimum Bend Radius
4.5
Reel Qty (ft)
120-160
Supplier Part Number
FC350-20
Alternate Part Numbers
Alternate Part Number C1CR81, Alternate Part Number MINO-00015F51895
Product Weight
1.26 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.19 Inch ID, Up to 2000.00 PSI

FC350-04 AQP Engine & Air Brake Hose

0.19

0.52

2000

0.75

28

500-650

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

FC350-06 AQP Engine & Air Brake Hose

0.31

0.68

1500

1.25

28

320-420

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

FC350-08 AQP Engine & Air Brake Hose

0.41

0.77

1250

1.75

28

450-600

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.50 Inch ID, Up to 1250.00 PSI

FC350-10 AQP Engine & Air Brake Hose

0.5

0.94

1250

2.25

28

310-400

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.62 Inch ID, Up to 750.00 PSI

FC350-12 AQP Engine & Air Brake Hose

0.62

1.08

750

2.75

20

230-300

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC350-16 AQP Engine & Air Brake Hose

0.88

1.23

400

3.5

15

180-240

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

FC350-20 AQP Engine & Air Brake Hose

1.12

1.5

300

4.5

15

120-160

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC350-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

100-150

Product Questions & Answers (4)

Question by: Glen S on Nov 11, 2025, 7:49 PM
got a 1-1/8 inch line on an air brake setup, is this hose the right size or am i mixing up the ID and OD?
Answer by: Customer Support on Nov 13, 2025, 6:53 AM
For sizing, the inside diameter on this hose is 1.12 inch, and the outside diameter is 1.5 inch. If you are matching a 1-1/8 inch flow path, the ID is the number to pay attention to, not the OD.
Question by: Melvin S on Sep 9, 2025, 2:05 PM
hose is rated for air brake systems right? got a rig that needs new lines and this looks like it'd fit the bill
Answer by: Customer Support on Sep 10, 2025, 2:06 PM
air brake is one of the core applications for this hose. It carries the FMVSS106 certification, which is the federal motor vehicle safety standard specifically required for air brake hose in commercial vehicle applications. The 1.12 inch ID and 300 PSI max operating pressure cover typical air brake system demands, though keep in mind the temperature ceiling for air service specifically is 250°F, not the full 300°F rating you'd see for other media like fuel or coolant.
Question by: Shawn F on May 30, 2025, 5:44 PM
got a tight spot under the hood. how tight can i bend this hose without kinkin it
Answer by: Customer Support on Jun 1, 2025, 7:31 AM
For routing, the minimum bend radius on this hose is 4.5 inches. Staying at or above that bend radius helps it keep its shape and avoid kinking while you’re snaking it through a crowded engine bay.
Question by: Dwight H on Apr 10, 2025, 6:41 PM
runs up to 300 PSI, but what's the temperature range on this hose? got a coolant line that sees some pretty nasty heat cycles
Answer by: Customer Support on Apr 11, 2025, 8:40 PM
Rated from negative 55 degrees F all the way up to positive 300 degrees F, so it handles cold starts in the dead of winter and sustained heat from engine coolant without breaking down. The AQP elastomer tube and polyester braid construction are what give it that kind of range across both extremes.
