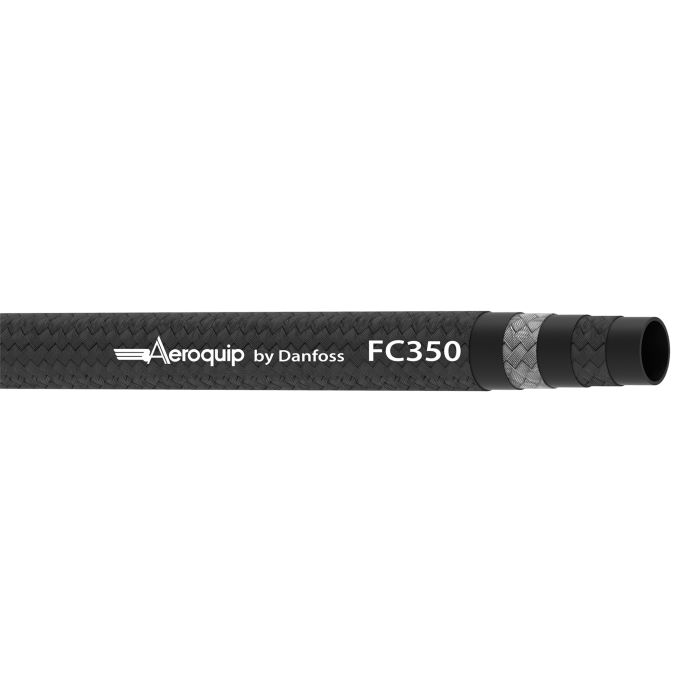

main product photo

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

Designed for engine and air brake circuit service, the AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI is an Eaton Aeroquip FC350 Series hose built to meet Federal Motor Vehicle Safety Standard 106 requirements. The 1.38-inch inner diameter and black polyester braid construction make it well suited for demanding underhood and brake system routing in commercial vehicle and heavy-duty mobile equipment applications.

Rated to 250 PSI, this hose handles engine fluids and air brake service where reliable performance and regulatory compliance are required. The polyester braid reinforcement provides flexible routing capability while maintaining structural integrity under sustained pressure.

SKU: FC350-24

Supplier Part Number (MPN): FC350-24

Alternate Part Numbers: C1GL69

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
1.38
Hose O.D.
1.75
Maximum Operating Pressure
250
Minimum Bend Radius
5.50
Minimum Bend Radius
5.5
Reel Qty (ft)
100-150
Supplier Part Number
FC350-24
Alternate Part Numbers
Alternate Part Number C1GL69
Product Weight
1.52 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.19 Inch ID, Up to 2000.00 PSI

FC350-04 AQP Engine & Air Brake Hose

0.19

0.52

2000

0.75

28

500-650

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.31 Inch ID, Up to 1500.00 PSI

FC350-06 AQP Engine & Air Brake Hose

0.31

0.68

1500

1.25

28

320-420

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.41 Inch ID, Up to 1250.00 PSI

FC350-08 AQP Engine & Air Brake Hose

0.41

0.77

1250

1.75

28

450-600

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.50 Inch ID, Up to 1250.00 PSI

FC350-10 AQP Engine & Air Brake Hose

0.5

0.94

1250

2.25

28

310-400

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.62 Inch ID, Up to 750.00 PSI

FC350-12 AQP Engine & Air Brake Hose

0.62

1.08

750

2.75

20

230-300

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC350-16 AQP Engine & Air Brake Hose

0.88

1.23

400

3.5

15

180-240

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.12 Inch ID, Up to 300.00 PSI

FC350-20 AQP Engine & Air Brake Hose

1.12

1.5

300

4.5

15

120-160

AQP Engine & Air Brake Black Polyester Braid Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC350-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

100-150

Product Questions & Answers (3)

Question by: Ricky Y on May 1, 2025, 9:53 AM
hose gonna hold up running air brake lines on a Class 8 truck? got 1-3/8 inch lines and need something rated for it
Answer by: Customer Support on May 3, 2025, 7:58 AM
For air brake use, the working pressure tops out at 250 PSI and the temperature ceiling on air service specifically is 250°F, which is a step down from the 300°F rating that applies to fuel and coolant applications. The 1.38 inch ID matches your line size, and the FMVSS106 certification means it meets federal motor vehicle safety standards for exactly this kind of application. The polyester braid cover and wire braid reinforcement are built for the vibration and routing demands you find in commercial truck installations.
Question by: Sherry G on Mar 17, 2026, 9:31 AM
What kind of stuff can I run through this hose?
Answer by: Customer Support on Mar 18, 2026, 5:07 PM
This AQP hose handles air, gasoline, fuel, lubricating oils, and coolants. Just make sure to check the general guidelines for selection, installation, and maintenance.
Question by: Travis B on Oct 28, 2025, 10:05 AM
got a 1-3/8" ID air brake line that needs replacing on an older rig, this the right hose for that size?
Answer by: Customer Support on Oct 29, 2025, 7:55 PM
A 1.38 inch ID matches a 1-3/8 inch line exactly, so yes, the bore size lines up for that application. The FC350-24 from Eaton Aeroquip is built specifically for engine and air brake service, and it carries FMVSS106 certification, which is the federal motor vehicle safety standard required for air brake hose used in highway vehicles. The black polyester braid construction holds up well in those under-hood environments where heat and movement are a constant factor.
