AQP Engine & Air Brake Blue Hose, FMVSS106, 0.19 Inch ID, Up to 1500.00 PSI

Ask A Question

Description & Features

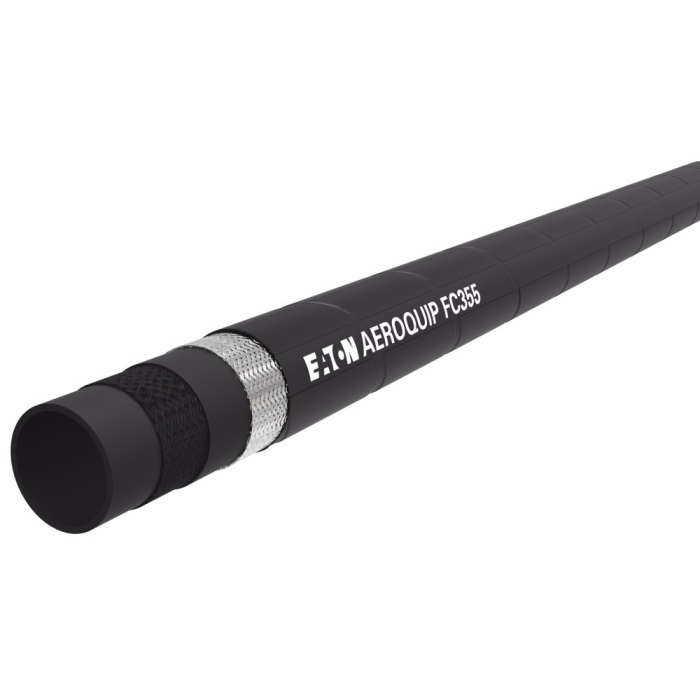

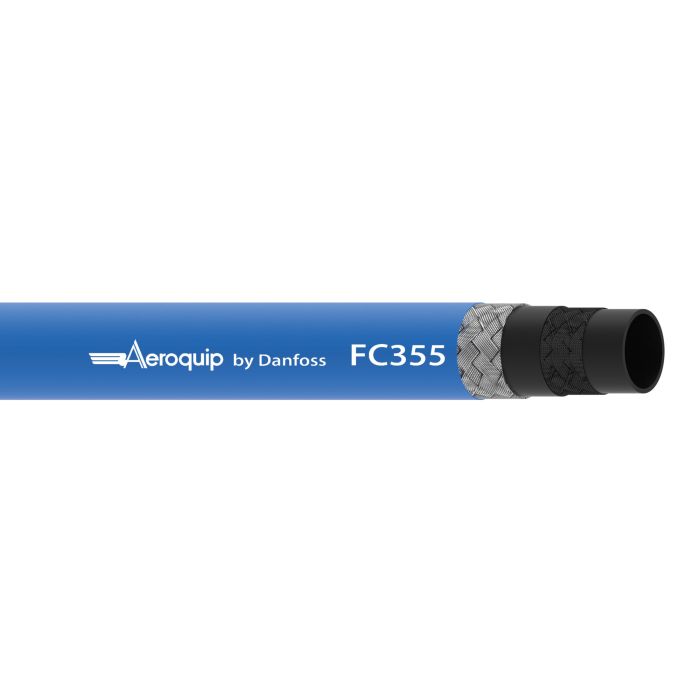

Designed for flexibility and durability, the Eaton Aeroquip FC355 Series Engine and Fuel Hose and Tubing offers superior performance in demanding applications. Constructed with AQPreg; elastomer tube, polyester inner braid, and single wire braid reinforcement, this hose ensures reliable use in a variety of environments.

With a 0.19-inch inner diameter and 0.52-inch outer diameter, it operates efficiently under a maximum pressure of 1500 PSI. The blue AQPreg; elastomer cover is resistant to various elements and supports a temperature range from -40deg;F to +300deg;F.

This hose is suitable for air, gasoline, fuel, lubricating oils, and coolants, making it versatile for multiple industrial uses. The minimum bend radius of 0.75 inches allows for ease of installation, even in tight spaces.

Vacuum service is rated at 28 inches, ensuring consistent performance. Available in reel quantities ranging from 510 to 670 feet, it meets FMVSS106 standards for safety and reliability.

MPN: FC355-04RL

Supplier Part Number: FC355-04RL

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.19
Hose O.D.
0.52
Maximum Operating Pressure
1500
Minimum Bend Radius
0.75
Minimum Bend Radius
0.75
Reel Qty (ft)
510-670
Supplier Part Number
FC355-04RL
Alternate Part Numbers
Alternate Part Number C1EQ11, Alternate Part Number FC355-04RL, Alternate Part Number MI-03640827, Alternate Part Number MINO-00015F34695, Alternate Part Number MINO-00015X00521
Product Weight
0.62 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Blue Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC355-16 AQP Engine & Air Brake Hose

0.88

1.24

400

3.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.13 Inch ID, Up to 300.00 PSI

FC355-20 AQP Engine & Air Brake Hose

1.13

1.52

300

4.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 0.19 Inch ID, Up to 1500.00 PSI

FC355-04 AQP Engine & Air Brake Hose

0.19

0.52

1500

0.75

28

510-670

AEROQUIP

FC355-06

1.25

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC355-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

Rolls Only

Product Questions & Answers (4)

Question by: Carl C on Aug 9, 2025, 8:40 AM
Can this hose handle regular gasoline alright?
Answer by: Customer Support on Aug 10, 2025, 6:50 PM
Yes, this AQP engine and air brake hose is suitable for gasoline, along with air, fuel, lubricating oils, and coolants.
Question by: Cheryl S on Aug 19, 2025, 7:22 PM
got a tight spot to route this hose, how sharp can i bend it without kinking?
Answer by: Customer Support on Aug 21, 2025, 6:51 AM
For tight routing, the minimum bend radius on this hose is 0.75 inch. Keeping your bend at or above that radius helps avoid kinks and protects the reinforcement.
Question by: Kirk K on May 3, 2025, 9:49 PM
What kind of fluids can this hose handle without breaking down?
Answer by: Customer Support on May 5, 2025, 6:39 AM
This hose is compatible with air, gasoline, fuel, lubricating oils, and coolants.
Question by: Scott H on Oct 27, 2025, 10:25 AM
hose says it works for air brakes and engine stuff, but can it handle gasoline and oil lines too or is that pushing it?
Answer by: Customer Support on Oct 28, 2025, 1:18 PM
Fuel, lubricating oils, and coolants are all listed as compatible media for this hose, so running it on a gasoline or oil line is well within what it's built for. The AQP elastomer tube handles that range of fluids without issue, and the single wire braid reinforcement keeps it solid up to 1500 PSI. It's not a stretch to use it across multiple fluid types in the same application if needed.
