AQP Engine & Air Brake Blue Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

Ask A Question

Description & Features

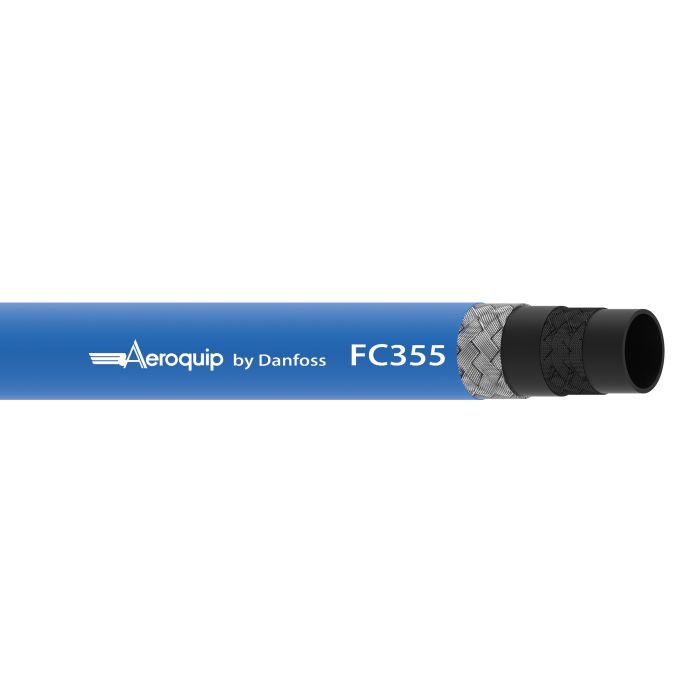

Designed by Danfoss Power Solutions Aeroquip, this specific application hose offers exceptional reliability for automotive and industrial air brake systems. It features an AQPreg; elastomer tube with polyester inner braid and single wire braid reinforcement.

The blue AQPreg; elastomer cover provides robust resistance to wear and environmental conditions. It supports a maximum operating pressure of 400 PSI and functions within a temperature range of -40deg;F to +300deg;F, though air should not exceed 250 PSI or +250deg;F.

Allowing flexibility in installation, its minimum bend radius is 3.5 inches. The vacuum service capacity reaches up to 15 inches Hg, making it adaptable to various industrial applications, including air, gasoline, fuel, lubricating oils, and coolants.

Meeting FMVSS106 standards ensures compliance and safety in brake system applications.

Supplier Part Number: FC355-16

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.88
Hose O.D.
1.24
Maximum Operating Pressure
400
Minimum Bend Radius
3.50
Minimum Bend Radius
3.5
Reel Qty (ft)
Rolls Only
Supplier Part Number
FC355-16
Alternate Part Numbers
Alternate Part Number C1HE59
Product Weight
1.39 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Blue Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC355-16 AQP Engine & Air Brake Hose

0.88

1.24

400

3.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.13 Inch ID, Up to 300.00 PSI

FC355-20 AQP Engine & Air Brake Hose

1.13

1.52

300

4.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 0.19 Inch ID, Up to 1500.00 PSI

FC355-04 AQP Engine & Air Brake Hose

0.19

0.52

1500

0.75

28

510-670

AEROQUIP

FC355-06

1.25

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC355-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

Rolls Only

Product Questions & Answers (3)

Question by: Bobby S on Mar 15, 2026, 10:30 AM
gonna use this for a compressed air setup on my rig. what is the hottest temp it handles before giving out
Answer by: Customer Support on Mar 17, 2026, 10:25 AM
Air applications max out at 250 degrees Fahrenheit. While the hose generally handles fluids up to 300 degrees, you need to keep compressed air under that 250-degree limit and below 250 PSI for safe operation.
Question by: Danny W on Oct 20, 2025, 3:23 PM
what's the max pressure this hose can handle for air brake use, and is that the same across all fluids or does it vary?
Answer by: Customer Support on Oct 22, 2025, 6:47 AM
For air service specifically, the limit is 250 PSI, not the full 400. The 400 PSI maximum operating pressure applies to other compatible fluids like fuel, lubricating oils, and coolants. So if you're running this in an air brake system, keep your operating pressure under that 250 PSI threshold. Temperature follows the same split logic too. Air should stay at or below 250 degrees F, while the overall hose rating goes up to 300 degrees F.
Question by: Dustin P on Mar 14, 2026, 7:28 PM
got a tight spot on a truck frame, how sharp can i bend this blue air brake hose without kinkin it
Answer by: Customer Support on Mar 16, 2026, 1:45 PM
For routing, the minimum bend radius is 3.5 inches. Keeping bends at or above that radius helps it stay flexible without collapsing or kinking.
