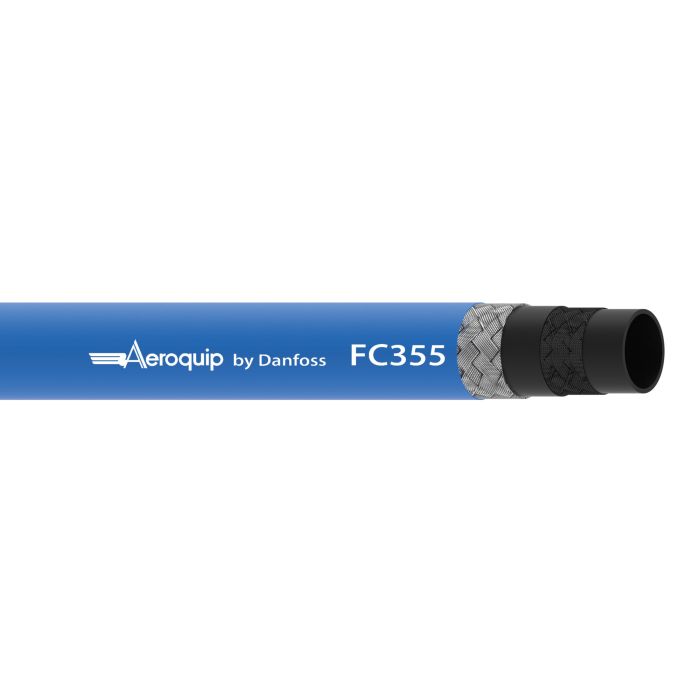

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.13 Inch ID, Up to 300.00 PSI

Ask A Question

Description & Features

The DANFOSS POWER SOLUTIONS (II LLC Aeroquip) AQP Engine & Air Brake Blue Hose is designed for rigorous air brake applications, boasting a 1.13 inch ID and maximum pressure up to 300 PSI. Constructed with an AQPreg; elastomer tube, this hose features a polyester inner braid and a single wire braid reinforcement, complemented by a blue AQPreg; elastomer cover for enhanced durability in demanding environments.

Suitable for use with air, gasoline, fuel, lubricating oils, and coolants, this hose operates within a temperature range of -40deg;F to +300deg;F, although for air applications, the temperature should not exceed 250deg;F or 250 PSI. Engineered to meet FMVSS106 standards, it ensures reliable performance and safety under tough conditions. The minimum bend radius of 4.5 inches provides flexibility while maintaining structural integrity, and the hose supports vacuum service up to 15 inches Hg.

Supplier Part Number: FC355-20

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
1.13
Hose O.D.
1.52
Maximum Operating Pressure
300
Minimum Bend Radius
4.50
Minimum Bend Radius
4.5
Reel Qty (ft)
Rolls Only
Supplier Part Number
FC355-20
Alternate Part Numbers
Alternate Part Number C1EQ12, Alternate Part Number MINO-00015F51461
Product Weight
1.73 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
AQP Engine & Air Brake Blue Hose, FMVSS106, 0.88 Inch ID, Up to 400.00 PSI

FC355-16 AQP Engine & Air Brake Hose

0.88

1.24

400

3.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.13 Inch ID, Up to 300.00 PSI

FC355-20 AQP Engine & Air Brake Hose

1.13

1.52

300

4.5

15

Rolls Only

AQP Engine & Air Brake Blue Hose, FMVSS106, 0.19 Inch ID, Up to 1500.00 PSI

FC355-04 AQP Engine & Air Brake Hose

0.19

0.52

1500

0.75

28

510-670

AEROQUIP

FC355-06

1.25

AQP Engine & Air Brake Blue Hose, FMVSS106, 1.38 Inch ID, Up to 250.00 PSI

FC355-24 AQP Engine & Air Brake Hose

1.38

1.75

250

5.5

11

Rolls Only

Product Questions & Answers (4)

Question by: Gene M on Jul 7, 2025, 8:24 PM
got an air brake line setup, is this hose actually rated for that and what’s it made of?
Answer by: Customer Support on Jul 9, 2025, 6:22 AM
For engine and air brake service, this hose is built with an AQP elastomer tube, a polyester inner braid, and a single wire braid reinforcement, finished with a blue AQP elastomer cover. It also calls out FMVSS106, which lines up with air brake hose requirements.
Question by: Debbie W on Mar 29, 2025, 6:47 AM
got a compressor setup running pretty hot air. what is the max pressure on that if im just pumping air through it
Answer by: Customer Support on Mar 31, 2025, 6:48 AM
Running air through the hose drops the maximum limits down to 250 PSI and 250 degrees Fahrenheit. For liquids like coolants or oils the rating goes up to the standard 300 PSI and 300 degrees.
Question by: Brett W on May 17, 2025, 9:23 AM
got a tight spot by the engine, how sharp can i bend this hose without kinkin it
Answer by: Customer Support on May 19, 2025, 6:00 AM
For routing, the minimum bend radius is 4.5 inches. Keeping bends at or above that radius helps it hold its shape and protects the reinforcement.
Question by: Judy W on Jan 23, 2026, 8:34 AM
What size is this hose, inside diameter-wise?
Answer by: Customer Support on Jan 24, 2026, 10:44 AM
It has an inner diameter of 1.13 inches.
