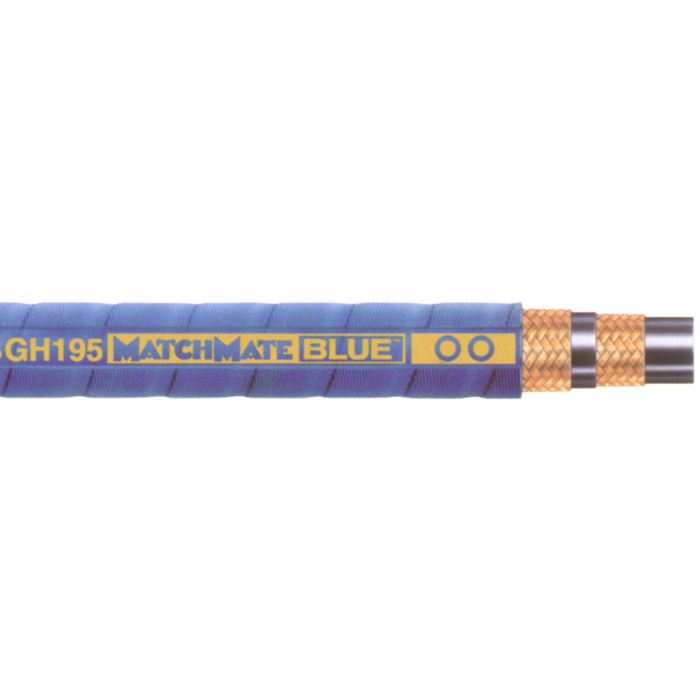

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose
Description & Features
| Application | Hydraulic system service with petroleum, fire resistant and water-base fluids, fuel and lubricating systems. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
| Construction | AQP® elastomer tube, double wire braid reinforcement and blue AQP® elastomer cover. |
| Temperature Range | -40°F. to +300°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|
GH195-6 AQP Hi-Impulse SAE 100R2AT Hose |
0.38 |
0.75 |
5000 |
|
5 |
Rolls Only |
|
|
GH195-8 AQP Hi-Impulse SAE 100R2AT Hose |
0.5 |
0.87 |
4250 |
|
7.01 |
300-390 |
|
|
GH195-12 AQP Hi-Impulse SAE 100R2AT Hose |
0.75 |
1.16 |
3000 |
|
9.49 |
180-240 |
|
|
GH195-20 AQP Hi-Impulse SAE 100R2AT Hose |
1.25 |
1.92 |
2250 |
|
16.5 |
Rolls Only |
|
|
GH195-4 AQP Hi-Impulse SAE 100R2AT Hose |
0.25 |
0.6 |
5750 |
|
4.02 |
320-420 |
|
|
GH195-10 AQP Hi-Impulse SAE 100R2AT Hose |
0.63 |
0.99 |
3250 |
|
7.99 |
240-310 |
|
|
GH195-16 AQP Hi-Impulse SAE 100R2AT Hose |
1 |
1.49 |
2500 |
|
12.01 |
120-160 |
|
Product Questions & Answers (1)
Question by: Brett R on Dec 16, 2025, 3:20 PM
Can I use this with different types of hydraulic fluid, or is it picky?
Answer by: Customer Support on Dec 18, 2025, 6:28 AM
This hose is suitable for petroleum-based, fire-resistant, and water-base hydraulic fluids, as well as fuel and lubricating systems.
