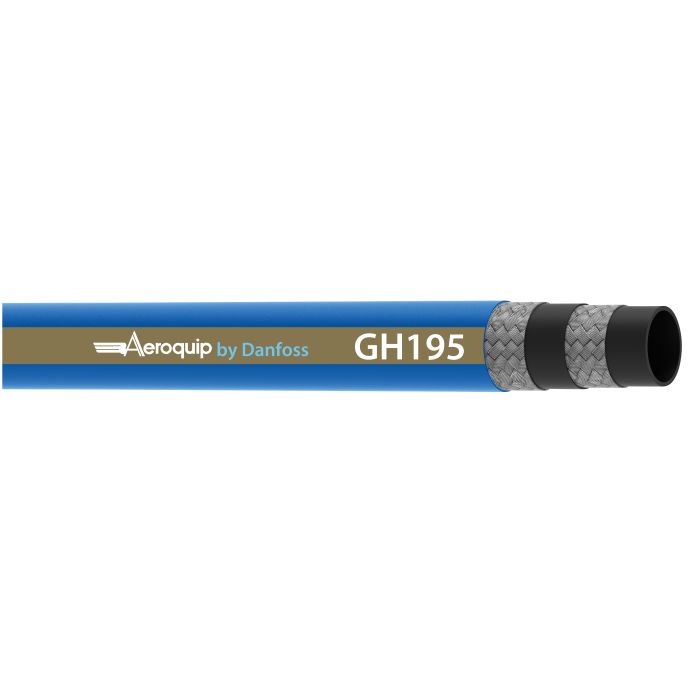

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.63 Inch ID, Up To 3250.00 PSI

Ask A Question

Description & Features

Engineered for demanding industrial applications this hose offers a robust solution for hydraulics crude oils gasoline and more. The double wire braid reinforcement combined with a blue elastomer cover ensures durability and dependable performance in harsh environments.

The AQP inner tube is designed to handle a variety of fluids including water-based hydraulic fluids and lubricating oils. Suitable for temperatures ranging from -40F to +300F this hose maintains functionality in extreme conditions. Its abrasion-resistant construction and high-tensile steel cords provide a reliable defense against wear and tear.

With a 0.63-inch inner diameter and a maximum operating pressure of up to 3250 PSI it delivers reliable service for high-pressure scenarios. The hose also features a minimum bend radius of 7.99 inches enhancing its flexibility for intricate system layouts.

Impulse cycle life is rated at 400 000 cycles ensuring longevity and reducing downtime. The embossed lay line style and conductive properties add an additional layer of safety and identification ease. The elastomer cover material supports long-term use while the reinforced 2-ply braid construction guarantees structural integrity.

Supplier Part Number: GH195-10RL

MPN: C1ZU72

Specifications

Abrasion Resistance
29
Application
Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.
Color
Blue
Conductivity
30
Construction
2-ply braid
Cover Material
Elastomer
Dash Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.63
Hose O.D.
0.99
Impulse Cycle Life
400000 cycle
Lay Line Style
Embossed
Maximum Operating Pressure
3250
Minimum Bend Radius
7.99
Minimum Bend Radius
7.99
Minimum Working Temperature
-40
Reel Qty (ft)
240-310
Reinforcement Material
High-tensile steel cords
Supplier Part Number
GH195-10RL
Tube Material
AQP Inner tube
Alternate Part Numbers
Alternate Part Number C1ZU72, Alternate Part Number GH195-10RL, Alternate Part Number MI-03911506, Alternate Part Number MINO-00015F03847, Alternate Part Number MINO-00015X20035
Product Weight
1.24 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Reel Qty (ft) Price Action
AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.38 Inch ID, Up To 5000.00 PSI

GH195-6 AQP Hi-Impulse SAE 100R2AT Hose

0.38

0.75

5000

5

Rolls Only

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.50 Inch ID, Up To 4250.00 PSI

GH195-8 AQP Hi-Impulse SAE 100R2AT Hose

0.5

0.87

4250

7.01

300-390

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.75 Inch ID, Up To 3000.00 PSI

GH195-12 AQP Hi-Impulse SAE 100R2AT Hose

0.75

1.16

3000

9.49

180-240

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.25 Inch ID, Up To 2250.00 PSI

GH195-20 AQP Hi-Impulse SAE 100R2AT Hose

1.25

1.92

2250

16.5

Rolls Only

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.25 Inch ID, Up To 5750.00 PSI

GH195-4 AQP Hi-Impulse SAE 100R2AT Hose

0.25

0.6

5750

4.02

320-420

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.63 Inch ID, Up To 3250.00 PSI

GH195-10 AQP Hi-Impulse SAE 100R2AT Hose

0.63

0.99

3250

7.99

240-310

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.00 Inch ID, Up To 2500.00 PSI

GH195-16 AQP Hi-Impulse SAE 100R2AT Hose

1

1.49

2500

12.01

120-160

Product Questions & Answers (3)

Question by: Rhonda M on Mar 16, 2026, 6:46 PM
What kind of stuff can I run through this hose without it eating away at the inside?
Answer by: Customer Support on Mar 18, 2026, 6:26 AM
This hose is designed to handle a pretty wide range of fluids, including standard hydraulic fluids, crude oil, gasoline, lubricating oils, and even water-based hydraulic fluids.
Question by: Judy W on May 17, 2025, 11:59 AM
got a tight spot to snake this through. what’s the smallest bend it’ll handle without kinking up
Answer by: Customer Support on May 19, 2025, 8:25 AM
Minimum bend radius on this hose is 7.99 inches. Keeping your routing at or above that radius helps it flex without putting the reinforcement under a sharp bend.
Question by: Troy S on Jun 15, 2025, 12:53 PM
Running a double-wire braid on our skid steer loader and need something that'll hold up to hydraulic fluid and handle the heat off the engine bay. This hose rated for that kind of setup?
Answer by: Customer Support on Jun 17, 2025, 6:39 AM
For hydraulic fluid applications, this hose handles it well. The inner tube is built to work with standard water-based hydraulic fluids and lubricating oils, and the temperature range runs from -40F up to 300F, so heat off an engine bay isn't going to be an issue. Operating pressure tops out at 3250 PSI, which covers most loader circuits without any trouble. The 2-ply steel braid reinforcement gives it the structural backbone for that kind of continuous demand, and the impulse cycle rating of 400,000 cycles means it's built for repeated pressure spikes, not just steady flow.
