AQP Single Wire Braid Blue SAE 100R5 Hose

Description & Features

Application	Hydraulics handling petroleum base fluids, air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids and other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

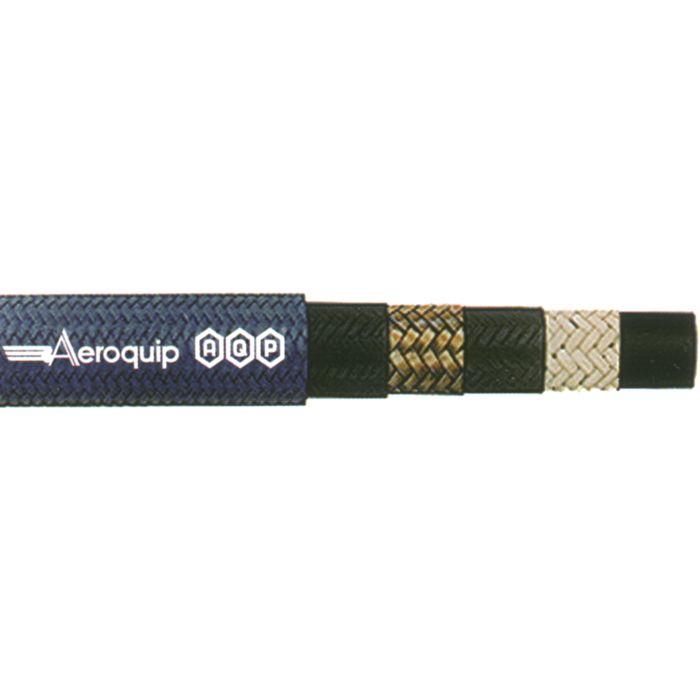

Construction	AQP® elastomer tube, polyester inner braid, single wire braid reinforcement and blue polyester braid cover.
Temperature Range	-55°F to +300°F except air +250°F

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
FC300-16 AQP Single Wire SAE 100R5 Hose	0.88	1.27	800	7.38	20	170-210
FC300-04 AQP Single Wire SAE 100R5 Hose	0.19	0.52	3000	3	28	490-640
FC300-05 AQP Single Wire SAE 100R5 Hose	0.25	0.58	3000	3.38	28	390-510
FC300-06 AQP Single Wire SAE 100R5 Hose	0.31	0.67	2250	4	28	300-390
FC300-08 AQP Single Wire SAE 100R5 Hose	0.41	0.76	2000	4.62	28	450-600
FC300-10 AQP Single Wire SAE 100R5 Hose	0.5	0.93	1750	5.5	28	300-390
FC300-12 AQP Single Wire SAE 100R5 Hose	0.62	1.08	1500	6.5	28	230-300
FC300-20 AQP Single Wire SAE 100R5 Hose	1.12	1.5	625	9	20	Rolls Only
FC300-24 AQP Single Wire SAE 100R5 Hose	1.38	1.75	500	10.5	15	Rolls Only
FC300-32 AQP Single Wire SAE 100R5 Hose	1.81	2.22	300	13.25	11	Rolls Only
FC300-40 AQP Single Wire SAE 100R5 Hose	2.38	2.88	300	24	8	Rolls Only

Product Questions & Answers (1)

Question by: Lynn B on Apr 24, 2025, 7:15 PM

Can this hose handle regular gasoline, not just the fancy stuff?

Answer by: Customer Support on Apr 26, 2025, 4:44 PM

This hydraulic hose is designed to handle gasoline, along with petroleum-based fluids, air, fuel, lubricating oils, and fire-resistant hydraulic fluids.
