AQP Wire Inserted Suction SAE 100R4 Blue Hose

Description & Features

Application	Suction and transfer applications for petroleum and phosphate ester hydraulic fluids, fuel, lubricating oils, gasoline, water and many other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

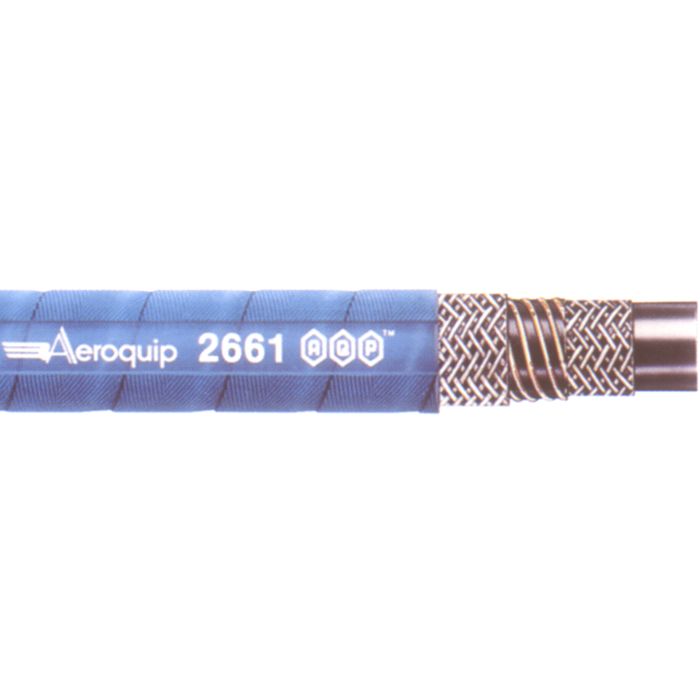

Construction	AQP® elastomer tube, reinforcement consisting of a helical wire between two textile braids and blue AQP® elastomer cover.
Crimp Fittings	Global TTC (Steel, Stainless Steel), -12 requires buffing, -20 requires 1AT or 1AV part number. Global TTC12, -12 only, no buffing required. Field Crimp, 12 and -16 only.
Fitting Attachment	T-Bolt Clamps (stainless band)
Industrial Reusable Fittings & Attachment Suggestions	Shank Type Combination Nipples attached with T-Bolt Band Clamps or Preformed Clamps.
Note	Maximum working pressure for clamped hose assembly is 50 psi.
Reusable Fittings	Shank Type Combination Nipples (Steel, Stainless Steel)
Temperature Range	-40°F to +300°F.

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2661-20 AQP Wire Inserted Suction Hose	1.25	1.8	200	8	28	Rolls Only
2661-16 AQP Wire Inserted Suction Hose	1	1.5	250	6	28	Rolls Only
2661-24 AQP Wire Inserted Suction Hose	1.5	2.06	150	10	28	Rolls Only
2661-32 AQP Wire Inserted Suction Hose	2	2.55	100	12	28	Rolls Only
2661-12 AQP Wire Inserted Suction Hose	0.75	1.25	300	5	28	Rolls Only

Product Questions & Answers (1)

Question by: Kent R on Oct 20, 2025, 12:23 PM

What kind of stuff can this hose handle, like what fluids?

Answer by: Customer Support on Oct 22, 2025, 8:54 AM

This hose is designed to work with petroleum, phosphate ester hydraulic fluids, fuel, lubricating oils, gasoline, water, and a variety of other industrial fluids.
