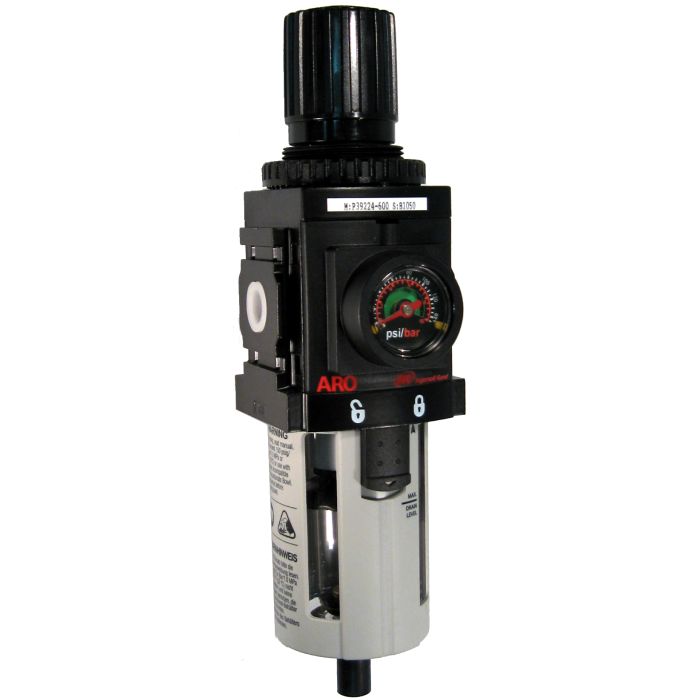

Aro-Flo Series Air Line Piggyback Filter/Regulator, Up To 1770 SCFM at 250/300 PSI

Description & Features

Features	Filter-regulators, or “piggybacks,” combine the functions of both a filter and regulator. Piggybacks are compact and most effective when space is a constraint. Piggybacks can be ordered with different filter elements and can be modified with different springs, depending on the filtration and air regulating requirements.
Gauge Port	1/8 NPT.
Maximum Inlet Pressure	1000 through 3000 Series: Polycaronate Bowl 150 psi, Metal Bowl 250 psi.
Temperature Range	1000 through 3000 Series: Polycaronate Bowl 23-125 °F, Metal Bowl 23-175 °F.

Model Number	Series	Flow Rating (SCFM)	Element	Drain Type	Materials	Function	Pressure Range (psi)	Gauge	Dimensions
P39124-100 Aro-Flo Series Filter/Regulator	1000	47	5 micron	Manual	Polycarbonate	Relieving	0-140 PSI	No	1.58W x 6.20H
P39124-600 Aro-Flo Series Filter/Regulator	1000	47	5 micron	Manual	Polycarbonate	Relieving	0-140 PSI	Yes	1.58W x 6.20H
P39224-600 Aro-Flo Series Filter/Regulator	1500	72	5 micron	Manual	Polycabonate	Relieving	0-140 PSI	Yes	2.21W x 8.15H
P39344-600 Aro-Flo Series Filter/Regulator	2000	172	5 micron	Manual	Polycarbonate	Relieving	0-140 PSI	Yes	2.78W x 9.96H
