Danfoss / Eaton Everflex B-1310

Description & Features

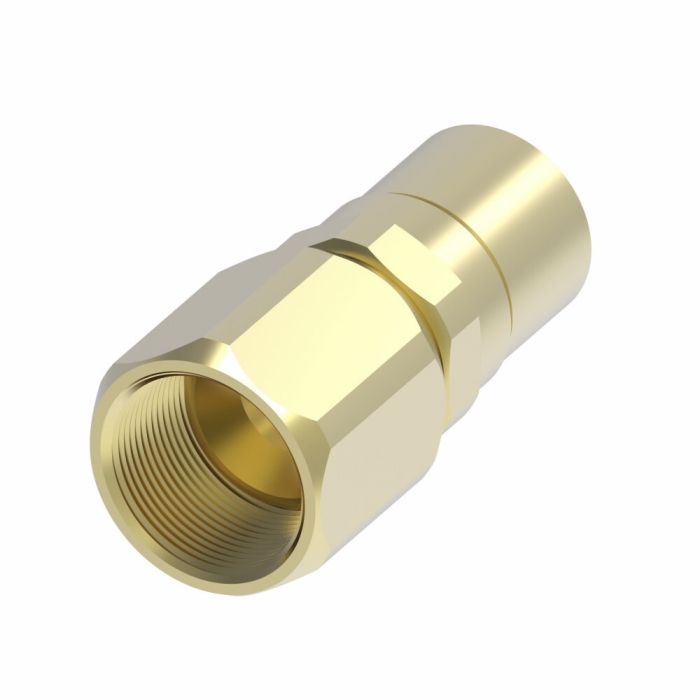

Experience superior performance with the Eaton Aeroquip Everflex B-1310 Fitting Assembly, designed to meet the demanding needs of industrial applications. This fitting features a female JIC 37° connection on one end and a versatile line/hose/tube connection on the other, making it ideal for diverse fluid transfer requirements. The durable brass construction ensures longevity and dependability under rigorous conditions.

Optimized inventory management allows easy mixing and matching of components, while the Dura-Kote plating provides exceptional corrosion resistance, extending the service life of the fittings. With a wide range of styles and configurations, this fitting assembly accommodates various system designs. The 0.875-inch hex size and -10 hose dash size further enhance its adaptability and efficient installation.

SKU: B-1310

Supplier Part Number (MPN): B-1310

Specifications

Brand
Danfoss
Compatible Hose ID
5/8 in
Compatible Tube OD
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Swage
Cut-Off Factor
1.3 in
Dimensions
2 in L
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
1/2 in
Fitting Type
Hose Fitting
For Use With
Everflex® STW, SCTW, B, M, S and SC Series Hoses
Hex Size
7/8 x 1 in
Hose Dash Size
10
Inside Diameter
0.45 in
Material
Brass
Material Construction
Brass
nmfc
60
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Tube Outside Diameter 1
5/8 in

Product Questions & Answers (1)

Question by: Glen M on Dec 7, 2025, 9:21 PM
trying to swap out a fitting i got here, is the B-1310 the one with a female JIC 37 on one side?
Answer by: Customer Support on Dec 9, 2025, 6:54 AM
On the JIC side, B-1310 is a female JIC 37 degree connection, and the other end is the line hose tube style connection.
