Danfoss / Eaton Fitting Perm (JIC)

Description & Features

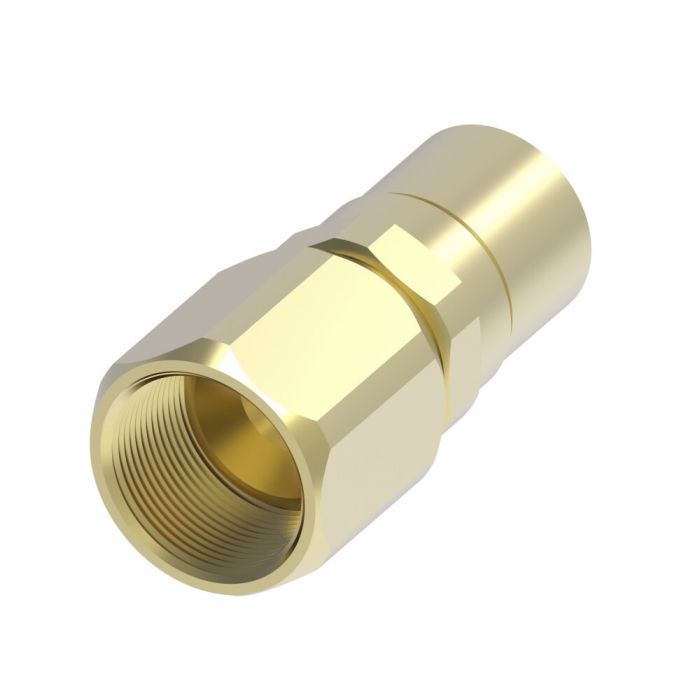

This Eaton Aeroquip fitting assembly features a female JIC 37 end and a male Line/Hose/Tube end. The Eaton fitting provides optimized inventory usage by allowing the mixing and matching of components, along with a wide range of styles and configurations.

Manufactured with Dura-Kote plating for superior corrosion resistance, the Danfoss / Eaton Fitting Perm (JIC) has a -10 hose dash size, a 0.625 end size 2, and a 1.0625 hex size 2. It is made of brass material and belongs to the Everflex sub-brand.

SKU: B-1312

Supplier Part Number (MPN): B-1312

Specifications

Brand
Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Cut-Off Factor
1.38 in
Dimensions
2-1/4 in L
End Gender 1
Female
End Gender 2
Male
End Size 2
5/8 in
Fitting Type
Hose Fitting
For Use With
Everflex® STW, SCTW, B, M, S and SC Series Hoses
Hex Size
1.06 in, 1.25 in
Hose Dash Size
12
Material
Brass
Material Construction
Brass
nmfc
60
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Brenda J on Dec 25, 2025, 11:07 AM
got a -10 hose and need a female JIC 37 on one side, is that what this B-1312 is set up for?
Answer by: Customer Support on Dec 26, 2025, 5:35 PM
For a -10 hose setup, B-1312 is a fitting assembly with a female JIC 37 end on one side and a male Line/Hose/Tube end on the other.
