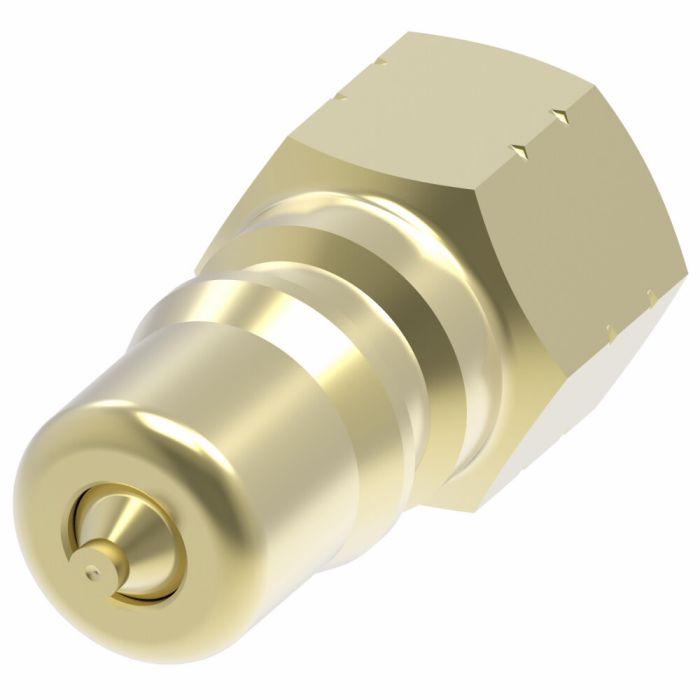

A brass male half coupling with a 1/4-inch port, the Danfoss / Eaton Cplng HK Series is built for demanding fluid transfer applications across agriculture, construction, oil and gas, aerospace, and a wide range of industrial markets. Its push-to-connect end with a ball lock internal connection allows quick coupling and disconnection without special tools, while the NPTF female port on the mating end provides a reliable threaded interface.
Constructed from brass and sealed with EPDM, this fitting handles a minimum working temperature of -65°F and supports a rated flow of 3 gallons per minute. The two-way valve design and ISO 7241-1 Series B certification confirm compatibility with common hydraulic circuit standards. Operating pressures exceed ISO 16028 requirements, making this coupling suitable for high-demand hydraulic tool and fluid transfer applications. No safety locking mechanism is incorporated, consistent with the HK Series push-to-connect configuration.
SKU: B2K16192
Supplier Part Number (MPN): B2K16192
|
Alternate Part Numbers
MINO-00015X08809
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
3 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Brass
|
Product Width
0.87
|
Safety locking Mechanism
None
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
B2K16192
|
Valve Type
2 way
|
Product Weight
0.09 lbs
|
