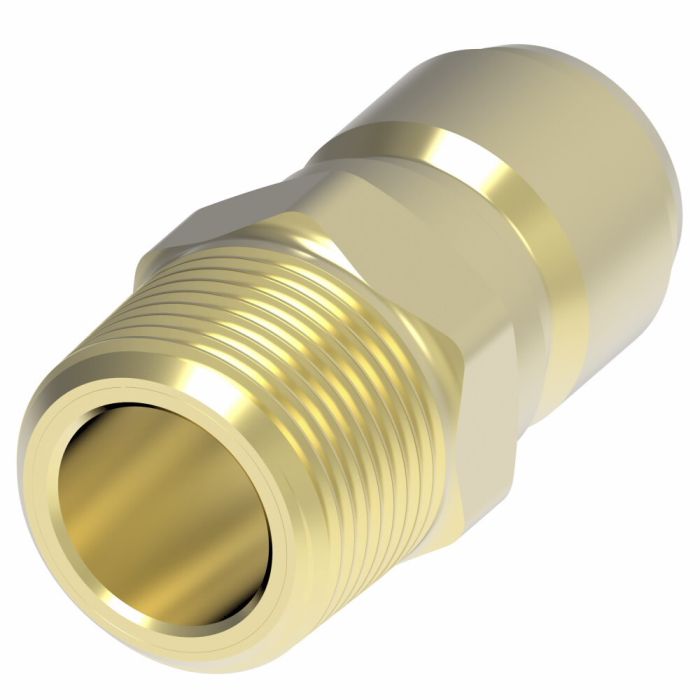

This Hansen Straight THROUGH Plug is designed for quick connection and disconnection without the need for special tools. It exceeds ISO 16028 operating pressures, ensuring reliable performance in demanding applications.
Constructed from brass with a Buna-N seal, this male half component features a push-to-connect end type and a 1/4 inch NPTF end type 2 connection. It's suitable for fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning applications. The internal ball lock mechanism contributes to its secure and efficient operation, with a flow rate of 5.6 gallons per minute. It can function in temperatures as low as -40 degrees Fahrenheit.
SKU: B2T15
Supplier Part Number (MPN): B2T15
|
Alternate Part Numbers
MINO-00015X08818
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
5.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/4
|
Product Material
Brass
|
Product Width
0.65
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B2T15
|
Valve Type
Straight Thru
|
Product Weight
0.06 lbs
|
