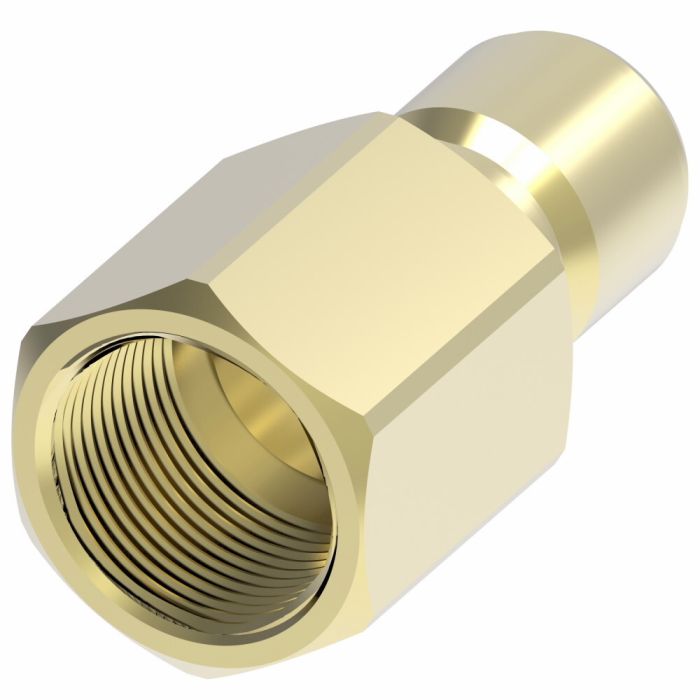

Designed for reliable fluid transfer across demanding industrial environments, the Danfoss / Eaton Hansen and Gromelle B2T16 Plug Brass 1/4-18 IN NPTF Female 1/4 IN Body Size is a straight-thru, ball-lock quick disconnect plug built for consistent performance across a wide range of applications. Constructed from brass with a Buna-N seal, it connects via a 1/4-18 NPTF female thread and features a push-to-connect interface on the male half for fast, tool-free coupling and decoupling.
Rated for a flow rate of 5.6 gallons per minute and operational down to -40°F, this plug suits fluid transfer in chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning applications. It exceeds ISO 16028 operating pressure standards, making it a dependable choice where performance margins matter. The Hansen ST Series coupling system accommodates frequent connect/disconnect cycles without requiring special tools or a safety locking mechanism.
SKU: B2T16
Supplier Part Number (MPN): B2T16
|
Alternate Part Numbers
MINO-00015X08819
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
5.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/4
|
Product Material
Brass
|
Product Width
0.79
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B2T16
|
Valve Type
Straight Thru
|
Product Weight
0.08 lbs
|
