This Danfoss / Eaton Cplng HK Series quick disconnect coupling plug is designed for use in hydraulic tool, agriculture, general industry, construction, fluid transfer, transportation, military, law enforcement/rescue, chemical, oil and gas, consumer products, HVAC, food and beverage, trucks, aerospace, and medical applications.

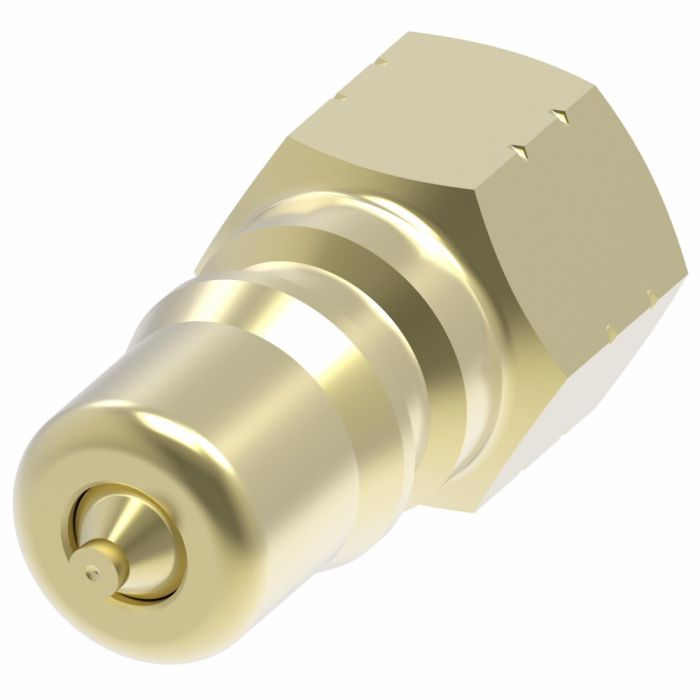

This male half coupling features a push to connect end with 3/8" port size. Constructed of brass with EPDM seals, it uses a ball lock internal connection and offers quick connect and disconnect without the need for special tools. The coupling is ISO 7241-1 Series B certified and operates within a temperature range of -65 degrees Fahrenheit to its maximum working temperature. It has a flow rate of 6 gallons per minute.
SKU: B3K21192
Supplier Part Number (MPN): B3K21192
|
Alternate Part Numbers
MINO-00015X08837
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
DANFOSS POWER - DNU SEE 95486
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
1.01
|
Safety locking Mechanism
None
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
B3K21192
|
Valve Type
2 way
|
Product Weight
0.15 lbs
|
