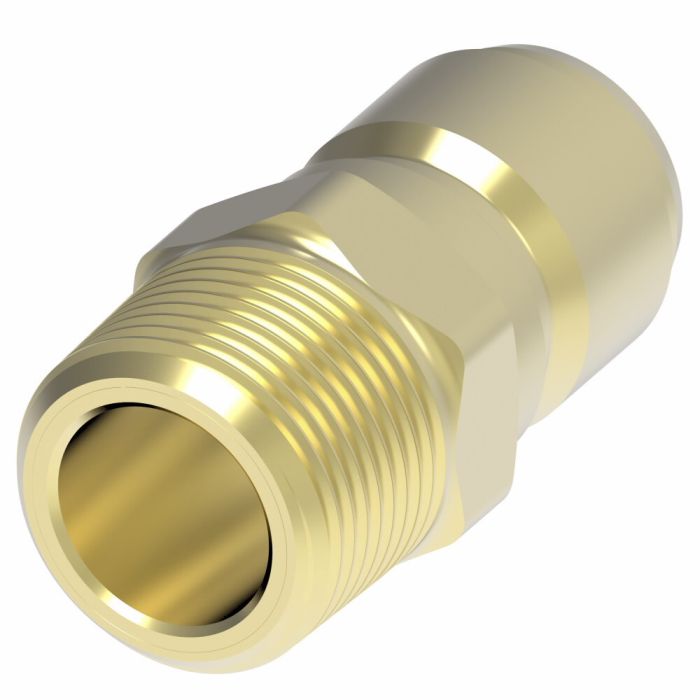

Designed for reliable fluid transfer across demanding industrial environments, this brass male half plug features a push-to-connect end with a 3/8 in. NPTF port and a straight-through valve configuration. The ball lock internal connection type ensures a secure, repeatable coupling engagement without the need for special tools, supporting a flow rate of up to 15 gallons per minute.
Part of the Hansen ST Series, the Danfoss / Eaton CPLG is built with a Buna-N seal and rated for operation down to -40°F, making it suitable for a broad range of fluid media and temperature conditions. Exceeding ISO 16028 operating pressures, it is appropriate for use in injection molding, pressure washing, steam cleaning, marine, medical, food and beverage, and chemical fluid transfer applications. The absence of a safety locking mechanism keeps connections straightforward in applications where rapid disconnection is a priority.
SKU: B3T20
Supplier Part Number (MPN): B3T20
|
Alternate Part Numbers
MINO-00015X08843
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
0.79
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B3T20
|
Valve Type
Straight Thru
|
Product Weight
0.10 lbs
|
