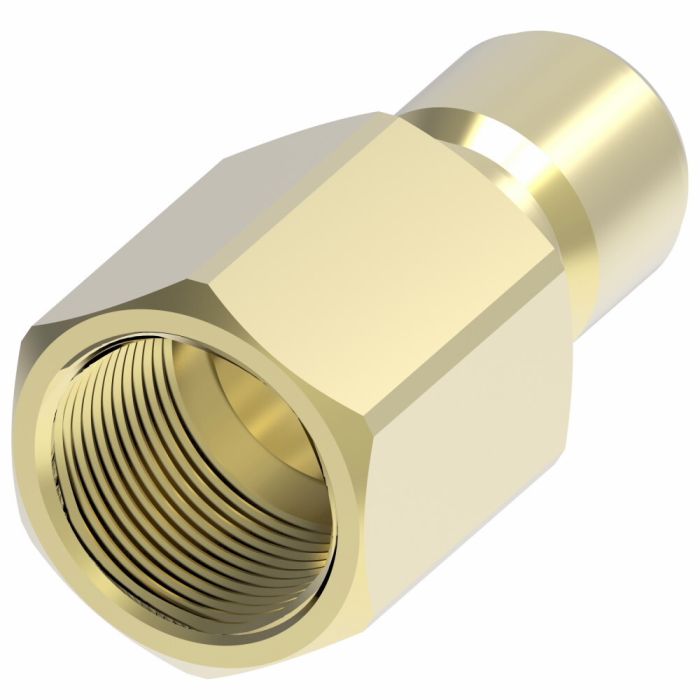

Constructed from brass with a Buna-N seal, this straight-through ball lock plug is designed for reliable quick connect and disconnect performance without the need for special tools. The Danfoss / Eaton Hansen and Gromelle B3T21 Plug Brass 3/8-18 IN NPTF Female 3/8 IN Body Size features a 3/8 IN NPTF female port and a push-to-connect male half configuration, supporting flow rates up to 15 gallons per minute.
Rated for operation down to -40°F, this coupling is well suited for demanding fluid transfer applications across industries including chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning. It exceeds ISO 16028 operating pressure standards, making it a dependable choice where connection integrity matters.
SKU: B3T21
Supplier Part Number (MPN): B3T21
|
Alternate Part Numbers
MINO-00015X08846
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
0.94
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B3T21
|
Valve Type
Straight Thru
|
Product Weight
0.11 lbs
|
