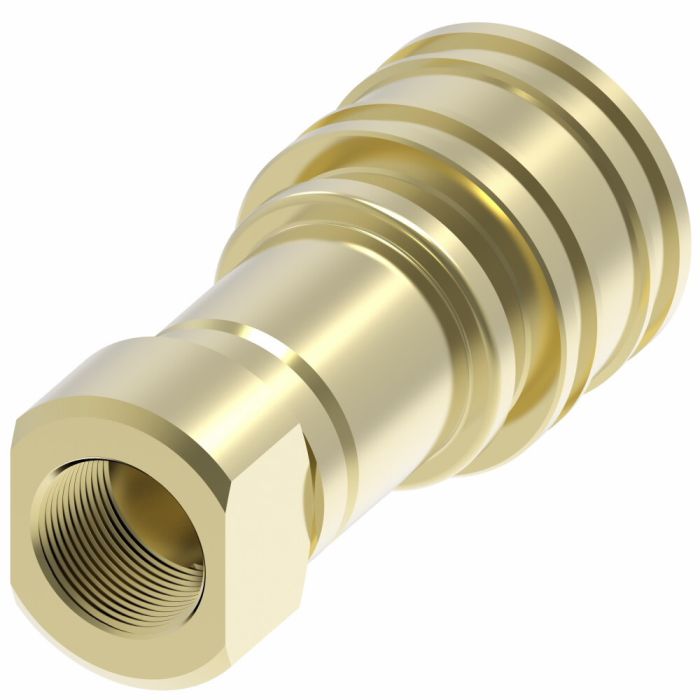

Designed for demanding hydraulic and fluid transfer applications, the Danfoss / Eaton Cplng HK Series is a brass female half quick disconnect coupling rated for flow up to 12 gallons per minute. Built to ISO 7241-1 Series B certification and exceeding ISO 16028 operating pressures, it suits a wide range of industries including agriculture, construction, oil and gas, chemical processing, food and beverage, and transportation.
The coupling features a push-to-connect end on one side and a 1/2" NPTF female thread on the other, with a ball lock internal connection and sleeve lock safety mechanism for secure, tool-free engagement and release. EPDM seals support broad fluid compatibility, and the unit is rated for use down to -65°F minimum working temperature. A two-way valve design and sleeve lock make it well-suited for pressurized systems where controlled disconnection matters.
SKU: B4HP26236
Supplier Part Number (MPN): B4HP26236
|
Alternate Part Numbers
MINO-00015X08860
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Chemical, Oil and Gas, Transportation, Food and Beverage, Trucks, Nuclear
|
Certifications
ISO 7241-1 Series B
|
Brand
DANFOSS POWER - DNU SEE 95486
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
0.50
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
12 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
Product Material
Brass
|
Product Width
1.86
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
B4HP26236
|
Valve Type
2 way
|
Product Weight
0.06 lbs
|
