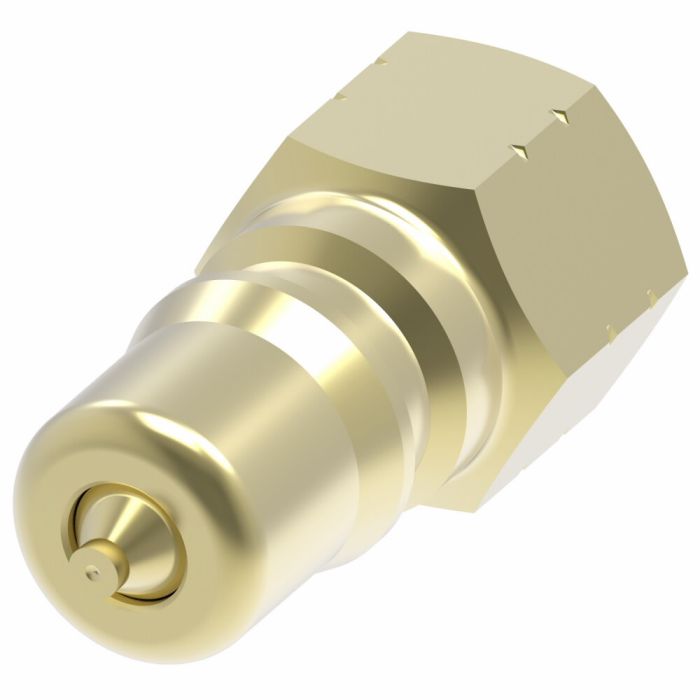

Designed for demanding fluid transfer across hydraulic tool, construction, agriculture, and industrial applications, the Danfoss / Eaton Brass ISO Fitting is a 3/4-inch male half quick disconnect coupling built to ISO 7241-1 Series B certification. Constructed from brass with FKM seals, it connects via a push-to-connect interface on the male end and a 3/4-inch BSPP female port, using a ball lock internal mechanism for secure engagement.
Part of the Hansen HK Series from Danfoss Power Solutions, this coupling supports a flow rate of 26 gallons per minute and operates down to -15°F minimum working temperature. It features a two-way valve configuration and requires no special tools for connection or disconnection, making it well suited for frequent coupling cycles. Exceeding ISO 16028 pressure requirements, it is rated for use across a broad range of industries including oil and gas, chemical, military, aerospace, transportation, and food and beverage. No safety locking mechanism is included.
SKU: B6KP31BS143
Supplier Part Number (MPN): B6KP31BS143
|
Alternate Part Numbers
MINO-00015X08981
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
DANFOSS POWER - DNU SEE 95486
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
26 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.52
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
B6KP31BS143
|
Valve Type
2 way
|
Product Weight
0.43 lbs
|
