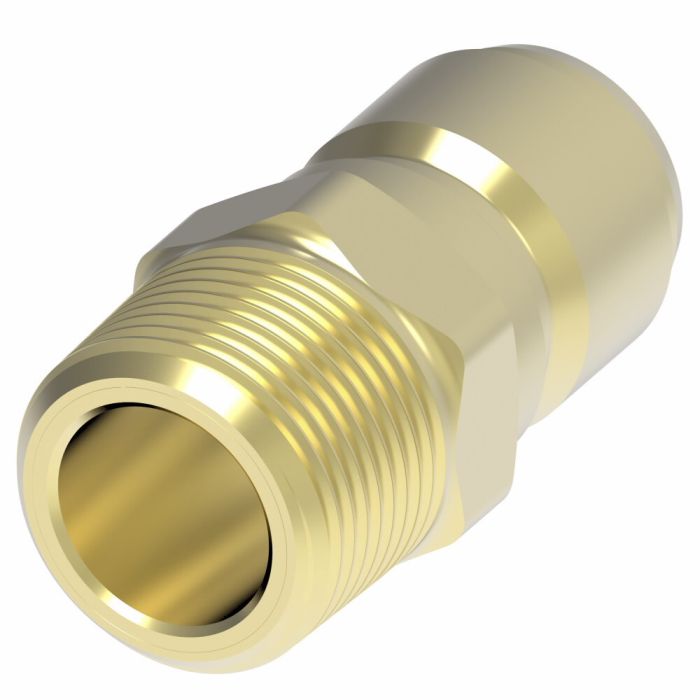

Constructed from brass with a Buna-N seal, this 3/4" male half plug is part of the Hansen ST Series and designed for reliable quick connect and disconnect without the need for special tools. The ball lock internal connection type ensures a secure coupling engagement, while the straight-through valve design supports a flow rate of up to 66 gallons per minute.
The Danfoss / Eaton / Hansen Plug features a Push to Connect end on one side and a BSPP port on the other, making it compatible with a wide range of industrial fluid transfer systems. Rated for use down to -40°F, it performs across demanding environments including marine, medical, chemical processing, food and beverage, pressure washing, and injection molding applications. Performance exceeds ISO 16028 operating pressure requirements.
SKU: B6T30BS
Supplier Part Number (MPN): B6T30BS
|
Alternate Part Numbers
MINO-00015X08987
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.44
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B6T30BS
|
Valve Type
Straight Thru
|
Product Weight
0.27 lbs
|
