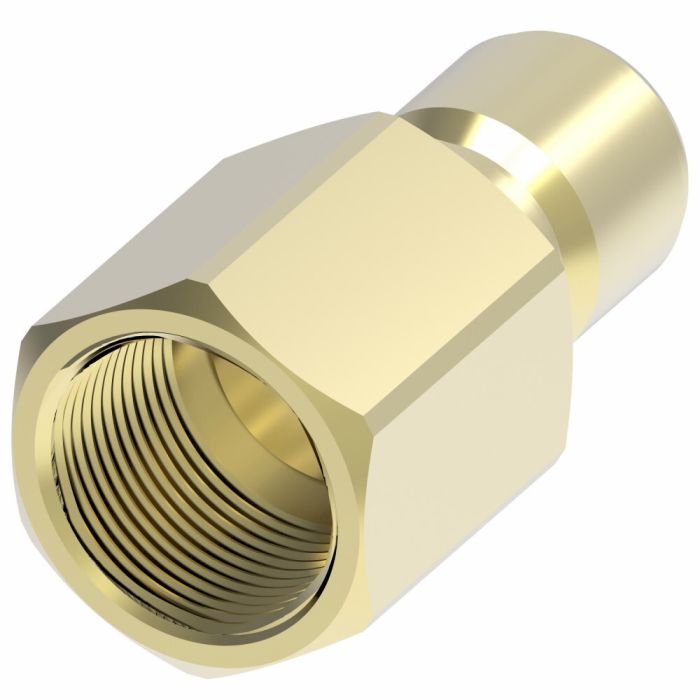

Designed for demanding fluid transfer applications, this brass quick disconnect coupling plug features a push-to-connect end with a 3/4" BSPP female port and a ball lock internal connection mechanism. The straight-through valve design supports flow rates up to 66 gallons per minute, making it well-suited for high-throughput industrial systems.
The Danfoss / Eaton / Hansen Plug is rated for a minimum working temperature of -40°F and uses Buna-N seals for reliable performance across a broad range of compatible fluids. It exceeds ISO 16028 operating pressure requirements and connects without special tools, reducing downtime during line changes. Typical applications include chemical handling, food and beverage processing, injection molding, marine, medical, pressure washing, and steam cleaning environments. The Hansen ST Series male half design includes no safety locking mechanism, keeping connection and disconnection straightforward in appropriate service conditions.
SKU: B6T31BS
Supplier Part Number (MPN): B6T31BS
|
Alternate Part Numbers
MINO-00015X08989
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
DANFOSS POWER - DNU SEE 95486
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.51
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
B6T31BS
|
Valve Type
Straight Thru
|
Product Weight
0.32 lbs
|
