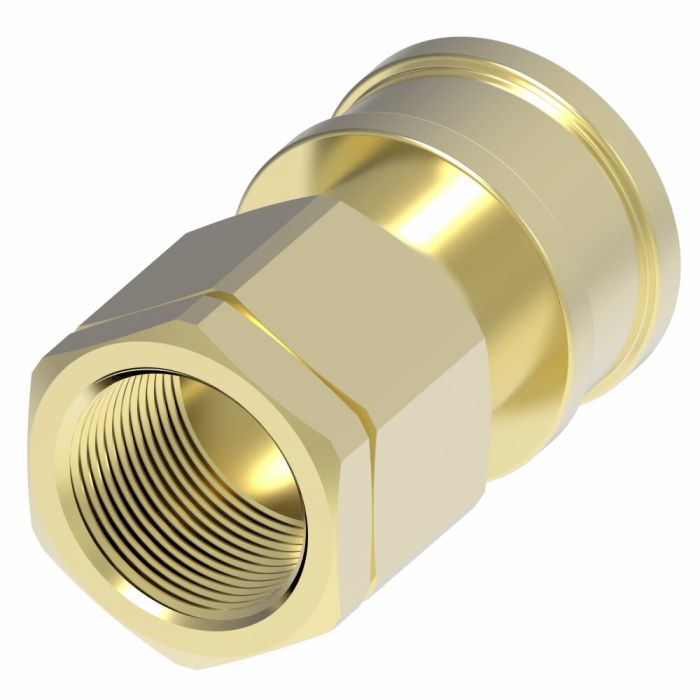

A brass-bodied female half coupling with a 1-inch NPTF port, the Danfoss / Eaton Cplng HK Series is a push-to-connect quick disconnect socket designed for demanding fluid transfer applications across agriculture, construction, oil and gas, aerospace, and general industry. The ball lock internal connection type enables fast, tool-free coupling and decoupling, while FKM seals support compatibility with a broad range of hydraulic fluids and chemicals.
Rated for flow up to 50 gallons per minute and certified to ISO 7241-1 Series B, this fitting exceeds ISO 16028 operating pressure requirements. A minimum working temperature of -15°F makes it suitable for cold-environment service. With no safety locking mechanism and a straightforward push-to-connect design, the HK Series socket is well suited for frequent connect/disconnect cycles in mobile, industrial, and fleet applications.
SKU: B8HP36143
Supplier Part Number (MPN): B8HP36143
|
Alternate Part Numbers
MINO-00925X12290
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
DANFOSS POWER - DNU SEE 95486
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Brass
|
Product Width
2.61
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
B8HP36143
|
Valve Type
2 way
|
Product Weight
2.47 lbs
|
