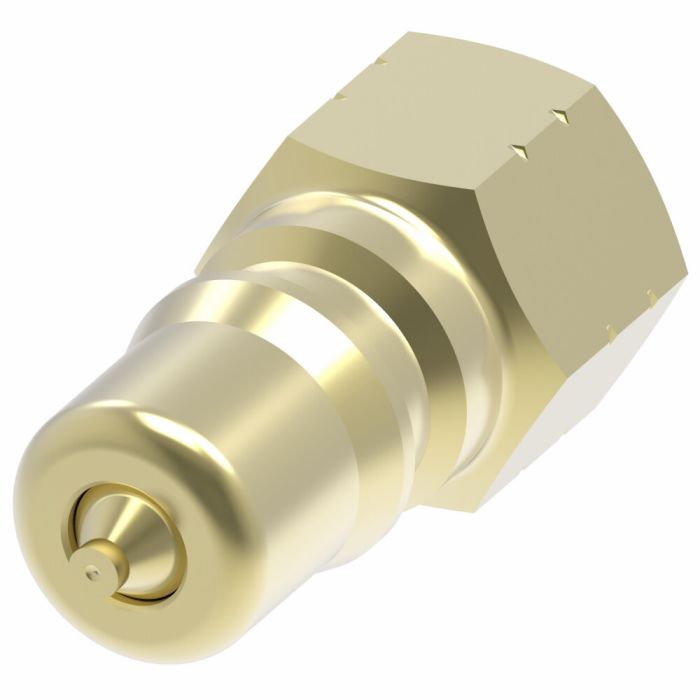

DANFOSS / EATON QUICK DISCONNECT. MALE/PLUG HALF. HK Series ( Brass ) ISO 7241-1 B Interchange.

Ask A Question

Description & Features

The Danfoss / Eaton Hansen HK Series Quick Disconnect Couplings Plug is designed for versatile applications ranging from agriculture to aerospace. Built from premium brass, this coupling plug provides reliable fluid transfer, ensuring robust performance even in demanding environments.

Certified under ISO 7241-1 Series B, this quick disconnect features a ball lock internal connection and a push-to-connect end type for simplified usage. Withstanding temperatures as low as -40 degrees, it is ideal for various industrial applications including hydraulic tools, construction, and oil and gas sectors.

Exceeding ISO 16028 operating pressures, it guarantees high efficiency without the need for special tools. The Buna-N seal material further enhances its durability, making it a dependable choice for professionals. No safety locking mechanism is included.

Supplier Part Number: B8KP36

Specifications

Brand
Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Style
Manual
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimensions
1.88 in Dia x 2.85 in L
Fitting Type
Coupling
Fluid Compatibility
Hydraulic Fluids
Hex Size
1.63 in
Latch Type
Push/Pull
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
1500 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
HK1-8 Series
Thread Size
1-11-1/2
Valve Type
2-Way

Product Questions & Answers (3)

Question by: Harold J on May 14, 2025, 10:31 AM
got a HK series socket already, is this the right plug half for it or am i mixing standards
Answer by: Customer Support on May 15, 2025, 8:05 PM
The key detail is interchange. This plug half is an HK Series in brass and it is ISO 7241-1 Series B interchange, with a ball lock internal connection. Pairing it with a coupler body that is also ISO 7241-1 B is the match you want.
Question by: Rick G on Mar 15, 2026, 8:08 PM
got a coupler body already, what style plug is this one supposed to match up with
Answer by: Customer Support on Mar 17, 2026, 1:50 PM
It’s an HK Series male plug half that follows ISO 7241-1 Series B interchange. It uses a ball lock internal connection and has a 2 way valve.
Question by: Neal S on May 28, 2025, 5:10 PM
what's the lowest temperature this coupling can handle? got equipment that sees some pretty brutal winters and need to know if brass is gonna hold up
Answer by: Customer Support on May 30, 2025, 6:09 AM
Rated down to -40 degrees, so cold weather use are well within range for this one. The brass construction and Buna-N seals are both compatible with that lower limit, which makes it a solid pick for outdoor hydraulic setups that take a beating in winter conditions.
