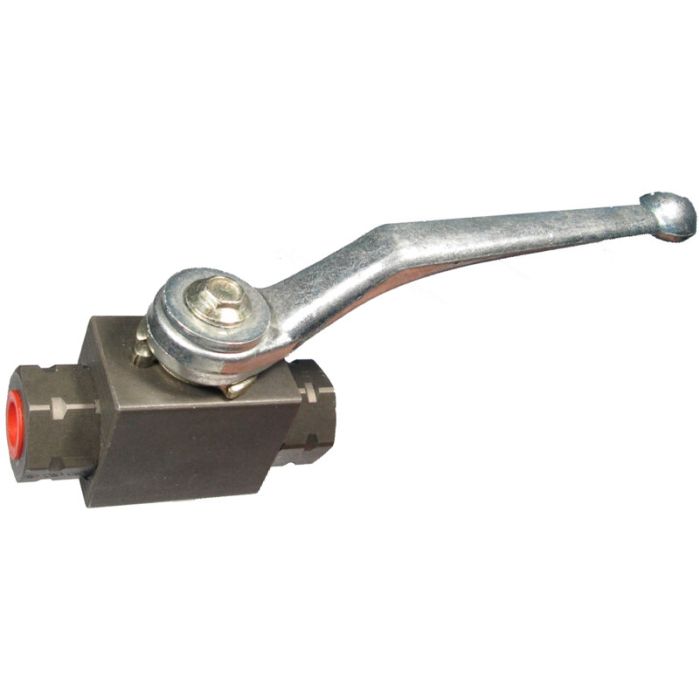

BBVM Series Steel Barstock Body Ball Valve, 3/4 NPT Ports, Up To 6000.00 PSI

Description & Features

The BBVM Series Steel Barstock Body Ball Valve offers robustness with its carbon steel body and a chrome-plated brass ball ensuring durability in demanding environments. Engineered for high performance this valve can handle a maximum working pressure of up to 6000 PSI for the 3/4 NPT port sizes.

Fully ported this ball valve includes Delrin seats and Viton O-Rings ensuring a seal life of up to 50 000 cycles. Suitable for a wide temperature range it operates efficiently between -14F and 212F.

Ideal for industrial applications the BBVM Series Steel Barstock Body Ball Valve 3/4 NPT Ports Up To 6000.00 PSI provides high reliability and long service life.

Supplier Part Number: 6100075975

Specifications

Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Maximum Working Pressure 6000	Ports 3/4 NPT	Ports 3/4 NPT	Supplier Part Number 6100075975	Alternate Part Numbers Alternate Part Number 662-0006, Alternate Part Number BBVM-2-N12-0200-M, Alternate Part Number BBVM20120200K, Alternate Part Number BBVM2N120200M, Alternate Part Number C1EK46, Alternate Part Number C1FD93, Alternate Part Number C1KL30, Alternate Part Number STNA32380	Product Weight 3.68 lbs

Similar Products

Model Number	Ports	Maximum Working Pressure	Features	Price	Action
BBVM21060201 BBVM Series Steel Ball Valve	SAE-06	7250
3404002070 BBVM Series Steel Ball Valve	3/4 NPT	6000

Product Questions & Answers (1)

Question by: Diane T on Mar 29, 2026, 7:33 PM

valve's rated for 6000 PSI on the 3/4 port -- does that hold up in continuous duty or just intermittent use?

Answer by: Customer Support on Mar 31, 2026, 6:23 PM

At 3/4 NPT, the maximum working pressure is 6000 PSI. The Delrin seats and Viton O-Rings are rated for up to 50,000 cycles, so it holds up well under repeated use. That said, the cycle rating covers open/close use, not a continuous pressure time limit, so as long as you're within the 6000 PSI ceiling and the operating temperature stays between -14°F and 212°F, it's built to last in regular working conditions.
