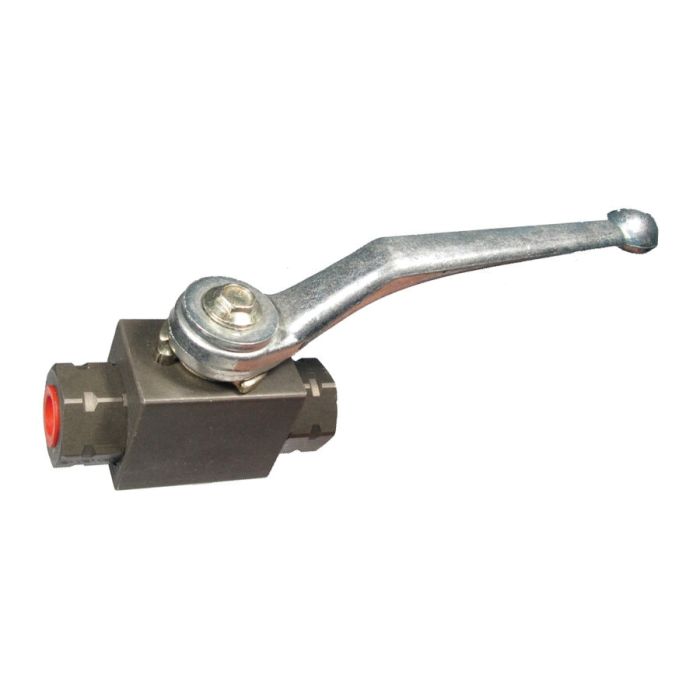

BBVM Series Steel Barstock Body Ball Valve, SAE-06 Ports, Up To 7250.00 PSI

Description & Features

The BBVM Series Steel Barstock Body Ball Valve SAE-06 Ports Up To 7250.00 PSI offers robust performance and reliability for industrial applications. Designed by Stauff Corporation this valve is constructed with a carbon steel body ensuring durability under high-pressure conditions.

This model features a chrome-plated brass ball and Delrin seats providing a seal life of up to 50 000 cycles. Additionally the valve is fully ported and incorporates Viton O-Rings making it suitable for a temperature range of -14F to 212F.

Maximum operating pressures vary by size: up to 7250 PSI for sizes 1/4 - 1/2 6000 PSI for sizes 3/4 and lower pressures for larger sizes.

MPN: 6100075982

Specifications

Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Maximum Working Pressure 7250	Ports SAE-06	Ports SAE-06	Supplier Part Number 6100075982	Alternate Part Numbers Alternate Part Number BBV-2-U06-8001-M, Alternate Part Number C1EK48, Alternate Part Number C1FD98, Alternate Part Number STNA32385	Product Weight 1.44 lbs

Similar Products

Model Number	Ports	Maximum Working Pressure	Features	Price	Action
BBVM21060201 BBVM Series Steel Ball Valve	SAE-06	7250
3404002070 BBVM Series Steel Ball Valve	3/4 NPT	6000

Product Questions & Answers (2)

Question by: Lee C on Apr 6, 2026, 4:06 PM

How many cycles can I expect outta these seats before they start givin me trouble?

Answer by: Customer Support on Apr 8, 2026, 10:27 AM

Seal life on this valve is rated for up to 50,000 cycles. The Delrin seats paired with the chrome-plated brass ball are what get you there. For most shop and industrial use, that's a solid service life before you'd need to think about rebuilding or replacing.

Question by: Wes M on Dec 4, 2025, 10:18 AM

Reckon this'll hold up if I'm pushin' it pretty hard most days?

Answer by: Customer Support on Dec 6, 2025, 7:42 AM

These Stauff ball valves are made to last. They're built with a carbon steel body and have a seal life of up to 50,000 cycles.
