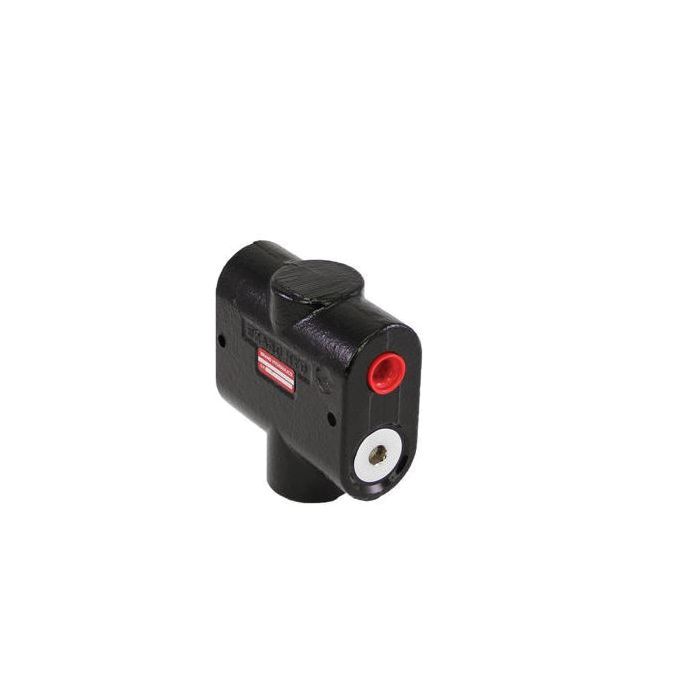

main product photo

BG5 Series 3-Port Pressure Compensated Non-Adjustable Constant Volume Priority Flow Divider, SAE -12 Ports, 0 - 30 GPM Main Flow, 2.00 Priority Flow

Ask A Question

Description & Features

This BG5 Series 3-Port Pressure Compensated Non-Adjustable Constant Volume Priority Flow Divider from Brand Hydraulics receives a single stream and divides it into a priority stream and an excess stream. Both outlet flows are pressure compensating, and the sum of the outlet flows equals the inlet flow. The priority flow is preset at the factory to customer requirements.

Features include a precision-ground, heat-treated steel spool for long life and pressure compensation for both outlet ports. Every flow divider is tested for priority flow and pressure compensation. Its large metering spool provides a greater area for the pressure differential to act upon.

The valve body is constructed of cast iron, with Buna N O-rings, and heat-treated steel spools. This flow divider offers a 0 to 30 GPM flow range and a 3000 PSI pressure rating. A 30-micron filter is recommended.

SKU: BG502-12SAE

Supplier Part Number (MPN): BG502-12SAE

Alternate Part Numbers: BG-502-12-SAE, C1MK41

Specifications

Brand
Brand Hydraulics
Adjustment
Without Adjustment
Body Material
Cast Iron
Check Valve
Without Check Valve
Connection Type
SAE
Dimensions
4.56 in L x 1.88 in W x 4.54 in H
Flow Option
Non-Adjustable Priority Divider
grp Recommended Filtration
30 um
Nominal Size
#12
Priority Setting
2
Seal Material
Buna-N
Series
BG5 Series
Spool Material
Steel

Similar Products

Model Number Flow Range Priority Setting Spool Material Price Action
BG5 Series 3-Port Pressure Compensated Non-Adjustable Constant Volume Priority Flow Divider, SAE -12 Ports, 0 - 30 GPM Main Flow, 8.00 Priority Flow

BG-508-12SAE BG5 Series Priority Flow Divider

0 - 30

8

Steel

Product Questions & Answers (1)

Question by: Neal A on Aug 27, 2025, 4:57 PM
got a steering circuit that needs a steady 2 gpm no matter what the rest of the system is doing. is that what this BG5 divider is for?
Answer by: Customer Support on Aug 29, 2025, 11:24 AM
In a system where one function has to get oil first, this valve splits one inlet flow into a priority outlet and an excess outlet. The priority side on this model is a constant 2.00 GPM setting, and both outlet flows are pressure compensated so the two outlet flows add up to the inlet flow.
