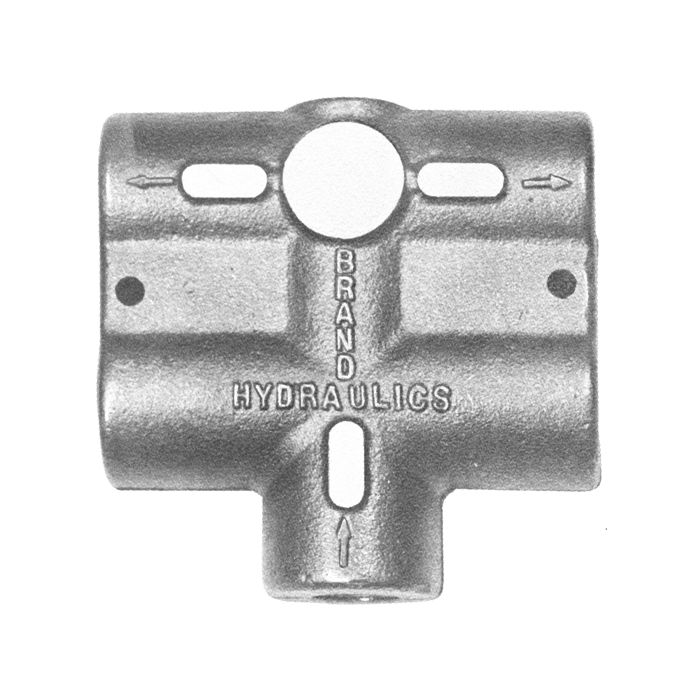

BG5 Series 3-Port Pressure Compensated Non-Adjustable Constant Volume Priority Flow Divider, Up To 3000 PSI & 30 GPM

Description & Features

Group Description	BG5 is a non-adjustable priority divider that receives a single stream and divides it into a priority stream and an excess stream. The two outlet flows are pressure compensating and the sum of said flows equals the inlet flow.
Features	• PRECISION GROUND HEAT TREATED SPOOL that assures long life. • PRESSURE COMPENSATION for both outlet ports. • PRIORITY FLOW IS PRESET at factory to customer requirements. • EVERY BG IS TESTED for priority flow and pressure compensation. • LARGE METERING SPOOL provides a greater area for the pressure differential to act upon.
Materials	• Cast Iron Body • Buna N O-Rings • Heat Treated Steel Spools
Pressure Rating	3000 PSI
Recommended Filtration	30-micron filtration recommended.

Products

Model Number	Flow Range	Priority Setting	Spool Material	Price	Action
BG-508-12SAE BG5 Series Priority Flow Divider	0 - 30	8	Steel
BG502-12SAE BG5 Series Priority Flow Divider	0 - 30	2	Steel

Product Questions & Answers (1)

Question by: Ricky C on May 25, 2025, 9:02 AM

How critical is that 30-micron filtration you mention? What happens if I skip it?

Answer by: Customer Support on May 26, 2025, 8:45 PM

Optimal performance hinges on that 30-micron filtration. Without it, you risk contaminants getting into the system and causing premature wear or even damage to the precision-ground spool and other internal components.
