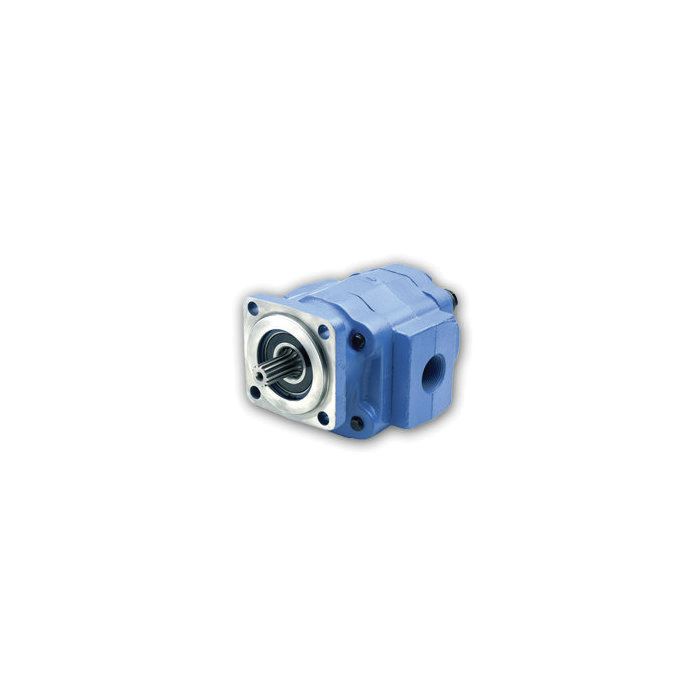

Box Motor With Internal Check Valves For Bi-Rotational Capability, 5.79 cu in/rev, 4-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, 1-1/4 NPT Side and Rear Ports, Replaces Muncie PL25

Engineered for demanding applications this 5.79 cu in/rev gear motor with 4-bolt SAE B mounting flange features a 13 tooth SAE B splined shaft and 1-1/4 NPT ports on both sides and rear. The robust design includes internal check valves facilitating bi-rotational capability and efficient case pressure management.

Utilizing Permco's "Continental Shaft " the motor allows for straightforward shaft changes by simply removing the snap ring eliminating the need for motor disassembly. All components from the shaft covers to the gear housings are made from a special iron alloy ensuring longevity and performance.

Precision-cut gears contribute to high volumetric efficiency. The motor operates best below 150F during continuous use with an inlet pressure limit of 2500 PSI. For optimal filtration a 25 micron return filter with a B10 rating of at least 2.2 is recommended.

MPN: M5100C731OFXQ22-14

Supplier Part Number: M5100C731OFXQ22-14
