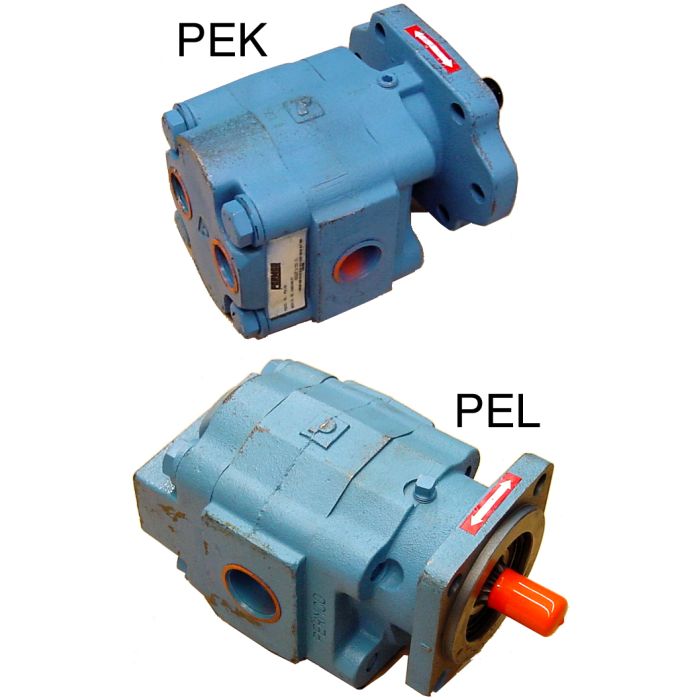

Box Motor With Internal Check Valves For Bi-Rotational Capability, Up To 46 GPM @ 1800 RPM, Up To 2500 PSI, Up To 2000 RPM

Description & Features

Application	All motors have both side and rear ports (The 2 unused ports need to be plugged). All motors are bi-rotational and may be used as bi-rotational pumps. All models have internal check valves that drain case pressure back to the low pressure side.
Features	Motors are stocked with Permco's ''Continental Shaft'' (Shaft can be changed without motor disassembly by removing shaft retaining snap ring and pulling shaft and bearing out). This allows for an easy shaft change to satisfy various applications. Special iron alloy used for shaft covers, gear housings, bearing carriers and port end cover castings. Gears are cut to extremely close tolerances, and are shaped (rather than hobbing and shaving) for maximum volumetric efficiency.
Maximum System Temperature	Under normal conditions of continuous operation, not to exceed 150°F. Never to exceed 185°F.
Note	Ratings based on using anti wear hydraulic fluid. For information on use with other fluids, contact us for assistance.
Pressure Limit	Inlet: 2500 PSI. Outlet: Pressures over 50 PSI require a case drain line be installed.
Rated Speed	2000 RPM.
Recommended Filtration	25 micron return filter with B10 rating of at least 2.2.

Model Number	Displacement	Mount	Shaft	Ports	Features
PEL17C Box Motor w Internal Check Valve	4.5	4-Bolt SAE B	13 Tooth SAE B Splined	1-1/4 NPT Side and Rear	Replaces Muncie PL19
PEL20C Box Motor w Internal Check Valve	5.15	4 Bolt SAE B	13 Tooth SAE B Splined	1-1/4 NPT Side and Rear	Bi-Rotational, Case Drain
PEL22C Box Motor w Internal Check Valve	5.79	4-Bolt SAE B	13 Tooth SAE B Splined	1-1/4 NPT Side and Rear	Replaces Muncie PL25
PEL25C Box Motor w Internal Check Valve	6.4	4 Bolt SAE B	13 Tooth SAE B Splined	1-1/2 NPT Side, 1-1/4 NPT Rear	Bi-Rotational, Case Drain
