Brass Adapter, 0.19 Inch Female 42 deg Inverted Flare Union Tee

Description & Features

Designed for use in instrumentation, hydraulic, and pneumatic systems, this brass union tee connects three lines with 3/8-inch SAE 42° inverted flare ends on all ports, providing a reliable, leak-resistant junction in tubing assemblies with a 3/16-inch outer diameter. The all-female configuration suits inline tee branches where a union-style connection is required at each port.

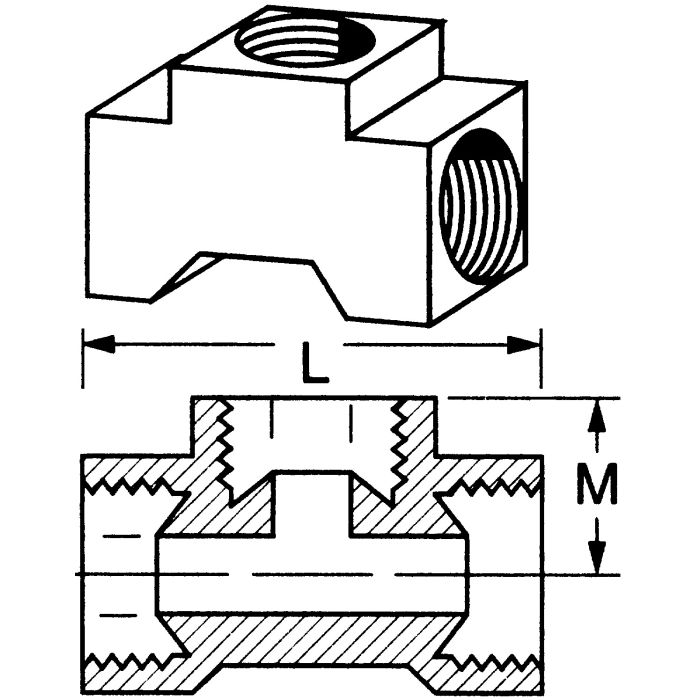

The Brass Adapter, 0.19 Inch Female 42 deg Inverted Flare Union Tee is rated for use down to -65°F, making it suitable for low-temperature environments common in fluid control and instrumentation applications. Compact in profile, with an overall length of 1.09 inches and a 0.39-inch M dimension, it fits within tight assemblies without compromising connection integrity. Catalog number C1GY27 from Danfoss / Eaton's 42° Inverted Flare Unions & Accessories line.

SKU: IG702X3

Supplier Part Number (MPN): 702X3

Specifications

Application Other - Instrumentation, hydraulic, and pneumatic systems	End Gender 1 13553	End Gender 2 13555	End Gender 3 13557	End Size 1 0.38	End Size 2 0.38	End Size 3 0.38	End Type 1 SAE	End Type 2 SAE	L 1.09	M 0.39	Minimum Working Temperature -65	Supplier Part Number 702X3	Thread Sealant No	Tube O.D. 0.19	Tube O.D. 0.1875	Product Weight 0.05 lbs

Product Questions & Answers (1)

Question by: Lance P on Oct 11, 2025, 10:10 AM

Will this here fitting work with 3/16" tubing? Just wanna make sure before I order a bunch.

Answer by: Customer Support on Oct 13, 2025, 9:51 AM

Rated for use with 3/16-inch outer diameter tubing, this brass tee should provide a secure, leak-resistant connection.
