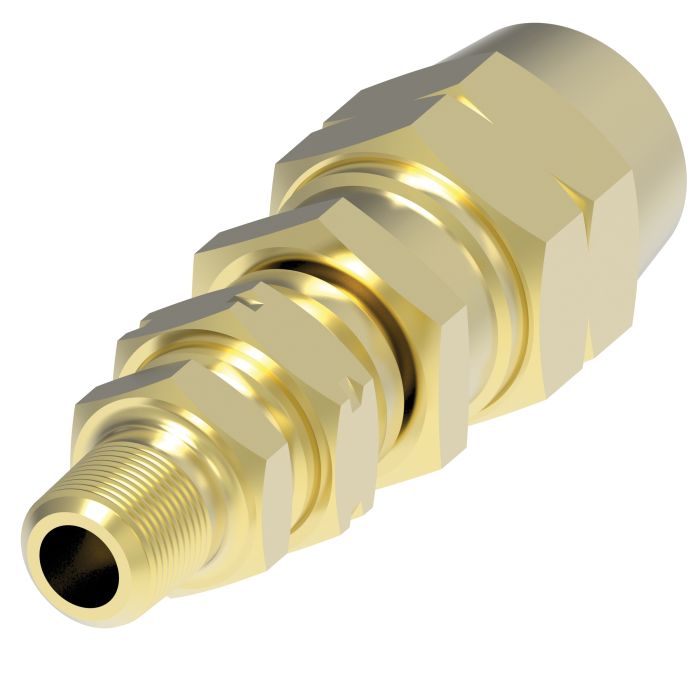

Brass Field Attachable 338 B Series Air Brake Hose End, 3/4-20 Female ABS Thread With Adapter, -06 Hose

Ask A Question

Description & Features

Designed for air brake hose lines the Brass Field Attachable 338 B Series Air Brake Hose End 3/4-20 Female ABS Thread With Adapter -06 Hose offers reliable performance and ease of assembly.

Compatible with H105 H115 and H338 hoses this hose end fitting is crafted from CA360 brass providing exceptional resistance to corrosion and ensuring durability under demanding conditions.

Notably this product features a 3/4-20 thread and a 0.75-inch hex size for a secure fit. The assembly process is straightforward: slide the nut and sleeve onto the hose push the hose into the fitting and screw the nut until contact is made with the body hex.

Stamped with DOT this hose end meets stringent quality standards. The hose cutoff length is 1.75 inches and it does not require a mandrel for assembly.

Pressure ratings are determined by the maximum working pressure for the hose size and hose end configuration whichever is lesser.

MPN: 33806B-Y86

Supplier Part Number: 33806B-Y86

Specifications

A
3.33
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.38
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Hex Size 2
0.75
Hose Cutoff
1.75
Hose Size
-06
Mandrel Required
No
Supplier Part Number
33806B-Y86
Thread 1
3/4-20
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1MJ69, Alternate Part Number MINO-00015X05767
Product Weight
0.31 lbs

Related Documents

Similar Products

Model Number Hose Size Thread 1 A Hose Cutoff Price Action
Brass Field Attachable 338 B Series Air Brake Hose End, 3/4-20 Female ABS Thread With Adapter, -06 Hose

33806B-Y84 Brass ABS Hose End

-06

3/4-20

3.33

1.75

Brass Field Attachable 338 B Series Air Brake Hose End, 3/4-20 Female ABS Thread With Adapter, -06 Hose

33806B-Y86 Brass ABS Hose End

-06

3/4-20

3.33

1.75

Brass Field Attachable 338 B Series Air Brake Hose End, 7/8-20 Female ABS Thread With Adapter, -08 Hose

33808B-Y86 Brass ABS Hose End

-08

7/8-20

3.35

1.8

Product Questions & Answers (2)

Question by: Patty J on Aug 19, 2025, 8:00 AM
does this thing need a mandrel to put together, or can i just do it in the field without special tooling?
Answer by: Customer Support on Aug 20, 2025, 11:24 AM
No mandrel needed on this one. Slide the nut and sleeve onto the hose with the bevel edge of the sleeve facing out toward the fitting, push the hose in until it bottoms out, then screw the nut until it contacts the body hex. That's the whole job. It's built to be assembled on-site without press equipment or shop tooling, which is the whole point of the field attachable design.
Question by: Kirk W on Aug 30, 2025, 1:12 PM
Hey, will this fitting hold up if it's bouncing around on a trailer all day?
Answer by: Customer Support on Sep 1, 2025, 6:55 AM
Crafted from CA360 brass, this fitting offers exceptional resistance to corrosion, which helps it withstand demanding conditions like vibration during transport.
