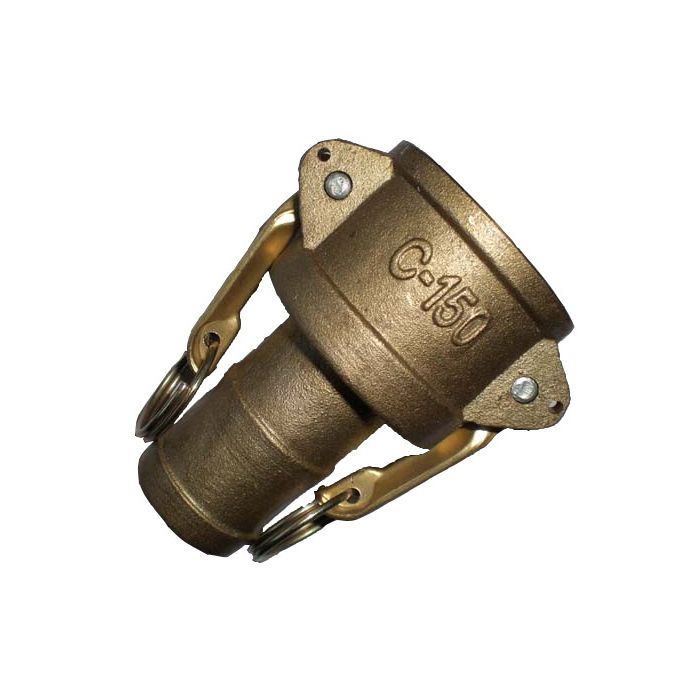

Brass Cam & Groove Coupler, Female Half, 1-1/2 Inch Hose Shank

Description & Features

Constructed from brass with stainless steel cam levers and Buna-N seals, the Brass Cam & Groove Coupler, Female Half, 1-1/2 Inch Hose Shank is built for reliable liquid transfer in industrial hose applications. The 1-1/2 inch hose shank end connects directly to compatible hose, while the cam and groove interface mates with standard adapters conforming to A-A-59326 (superseding Mil-C-27487F) or Din 2828, ensuring broad interchangeability across manufacturers.

Coupling and uncoupling require only hand pressure, pressing the cam levers down to lock and lifting them to release. A safety clip feature adds a secondary lock: cast-in lugs on the female coupler allow safety pins to be inserted through slots in the cam lever arms, preventing accidental uncoupling under load. Pressure rating is 150 PSI for this 1-1/2 inch size. Pins, rings, and safety clips are plated steel. Intended for liquid service only.

SKU: BLC-150

Supplier Part Number (MPN): BLC-150

Alternate Part Numbers: C1MN39

Specifications

Brand Fuzhou Hengsheng Hardware	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Brass	Material Construction Brass	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Product Questions & Answers (2)

Question by: Hank O on Apr 2, 2026, 7:05 AM

got a 1-1/2 inch hose, how’s this one hook up, do I just clamp it on the shank?

Answer by: Customer Support on Apr 4, 2026, 6:19 AM

For the hose side, it has a 1-1/2 inch hose shank that goes directly into a compatible hose, and the attachment method depends on the hose type. On the cam and groove side, you slide the matching adapter in and press the cam levers down by hand to lock it.

Question by: Melvin T on Nov 17, 2025, 11:49 AM

What kind of liquids can I run through this coupler? I'm mainly moving water, but sometimes I need to move some light oils and maybe some de-icing fluid.

Answer by: Customer Support on Nov 18, 2025, 3:06 PM

This coupler is designed for liquid service. Keep in mind the Buna-N seal material offers good resistance to petroleum-based fluids, but for specific chemical compatibility, it's always best to consult a chemical compatibility chart.
