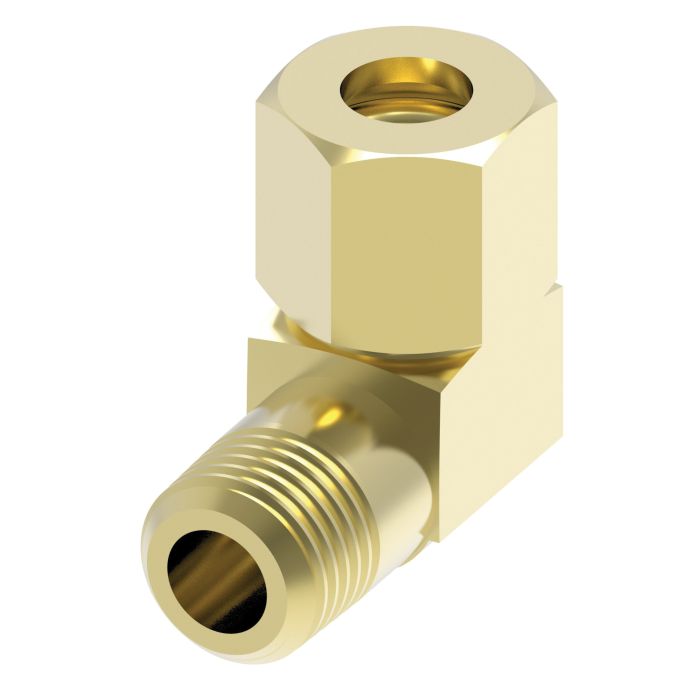

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.19 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

Description & Features

Engineered for precision this 90-degree elbow compression fitting is designed to securely connect plastic copper or aluminum tubing. Suitable for instrumentation hydraulic and pneumatic systems it provides reliable performance in various applications. Built from CA360 brass the fitting ensures durability and longevity while maintaining a working pressure of up to 2000 psi.

This fitting meets ASA ASME and SAE specifications and is listed by Underwriter's Laboratories for flammable liquids (special order). Easy to assemble without flaring it supports a broad selection of styles and sizes and offers fair vibration resistance with long nut options available for enhanced vibration resistance.

Temperature ranges extend from -65F to +250F when used with metal tubing. For plastic tubing its essential not to exceed the tubing's temperature range. Brass Compression Fitting For Plastic Copper & Aluminum Tubing 0.19 Inch Tube OD To 1/8-27 Male NPT 90 deg Elbow simplifies assembly with no flaring required and accommodates a variety of tubing materials.

MPN: 69X3

Supplier Part Number: 69X3

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 3/16 in	Connection Size 2 1/8 in	Connection Type Compression, MNPT	Connection Type 1 Female Compression	Connection Type 2 Male NPTF	Dimension Standards SAE 060202BA	Fitting Type 90 deg Elbow	For Use With Aluminum, Copper and Plastic Tubings	m Dimensions 0.62 in	Material Brass	Material Construction Brass	n Dimensions 0.69 in	Series 69X Series	Thread Size 1/8-27

Similar Products

Model Number	Tube O.D.	Thread Size	M	N
69X6X2 Brass Compression To Male NPT 90 Elbow	0.375	1/8-27	0.69	0.69
69X8 Brass Compression To Male NPT 90 Elbow	0.5	3/8-18	0.94	1.12
69X8X8 Brass Compression To Male NPT 90 Elbow	0.5	1/2-14	0.94	1.31
69X10 Brass Compression To Male NPT 90 Elbow	0.625	1/2-14	1.06	1.31
69X2 Brass Compression To Male NPT 90 Elbow	0.125	1/8-27	0.6	0.67
69X4 Brass Compression To Male NPT 90 Elbow	0.25	1/8-27	0.62	0.75
69X4X4 Brass Compression To Male NPT 90 Elbow	0.25	1/4-18	0.62	0.75
69X5X4 Brass Compression To Male NPT 90 Elbow	0.3125	1/4-18	0.69	0.84
69X6 Brass Compression To Male NPT 90 Elbow	0.375	1/4-18	0.75	0.94
69X6X6 Brass Compression To Male NPT 90 Elbow	0.375	3/8-18	0.84	0.94
69X6X8 Brass Compression To Male NPT 90 Elbow	0.375	1/2-14	1.06	1.12
69X8X4 Brass Compression To Male NPT 90 Elbow	0.5	1/4-18	0.84	0.94
