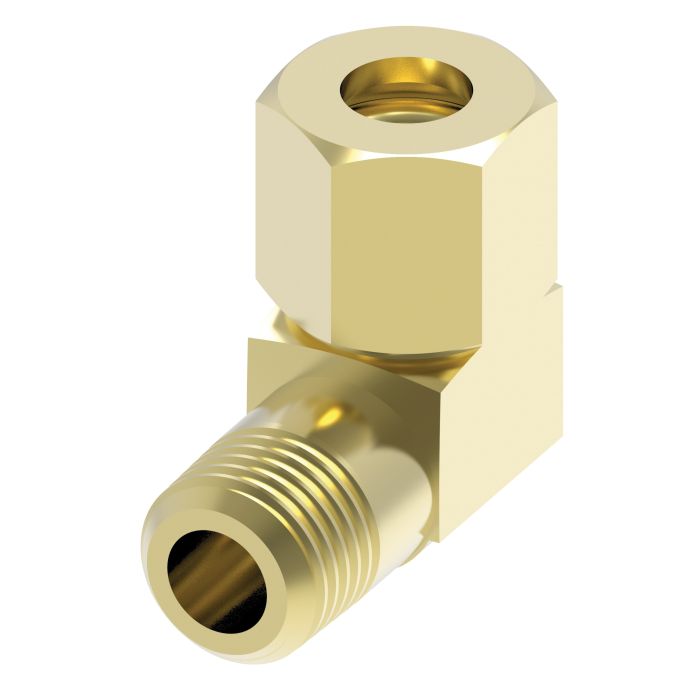

main product photo

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

Designed for efficient and reliable connections this brass compression fitting is compatible with plastic copper and aluminum tubing. The fitting features a 0.25 inch tube OD and a 1/4-18 male NPT connection at a 90-degree elbow angle making it suitable for hydraulic pneumatic and instrumentation systems.

Manufactured from high-quality CA360 brass the fitting ensures robust performance with a working pressure up to 2000 psi and a temperature range of -65F to +250F when paired with metal tubing. The assembly process requires no flaring providing a straightforward installation experience.

This fitting meets the stringent standards of ASA ASME and SAE ensuring dependable and safe operations. When utilizing plastic tubing an appropriate insert may be necessary to maintain integrity. Optimal for applications that demand fair resistance to vibration this component is capable of providing reliable service over time.

**Supplier Part Number:** 69X4X4

**MPN:** C1HR33

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
0.62
N
0.75
Supplier Part Number
69X4X4
Thread 1
1/4-18
Tube O.D.
0.25
Tube O.D.
0.25
Alternate Part Numbers
Alternate Part Number C1HR33, Alternate Part Number MI-00334095, Alternate Part Number MINO-00925F73383
Product Weight
0.11 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X6X2 Brass Compression To Male NPT 90 Elbow

0.375

1/8-27

0.69

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X8 Brass Compression To Male NPT 90 Elbow

0.5

3/8-18

0.94

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X8X8 Brass Compression To Male NPT 90 Elbow

0.5

1/2-14

0.94

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X10 Brass Compression To Male NPT 90 Elbow

0.625

1/2-14

1.06

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.13 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X2 Brass Compression To Male NPT 90 Elbow

0.125

1/8-27

0.6

0.67

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.19 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X3 Brass Compression To Male NPT 90 Elbow

0.1875

1/8-27

0.62

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X4 Brass Compression To Male NPT 90 Elbow

0.25

1/8-27

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X4X4 Brass Compression To Male NPT 90 Elbow

0.25

1/4-18

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.31 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X5X4 Brass Compression To Male NPT 90 Elbow

0.3125

1/4-18

0.69

0.84

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X6 Brass Compression To Male NPT 90 Elbow

0.375

1/4-18

0.75

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X6X6 Brass Compression To Male NPT 90 Elbow

0.375

3/8-18

0.84

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X6X8 Brass Compression To Male NPT 90 Elbow

0.375

1/2-14

1.06

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X8X4 Brass Compression To Male NPT 90 Elbow

0.5

1/4-18

0.84

0.94

Product Questions & Answers (2)

Question by: Danny J on Jan 24, 2026, 1:09 PM
Will this fitting hold up okay in a hydraulic system with moderate vibration?
Answer by: Customer Support on Jan 26, 2026, 6:02 AM
This brass compression fitting is designed to offer fair resistance to vibration making it suitable for hydraulic systems where moderate vibration is present.
Question by: Dean H on Feb 7, 2026, 5:53 PM
Got 1/4 inch OD tubing running to a gauge on a pneumatic panel, will this elbow fitting work for that kind of setup?
Answer by: Customer Support on Feb 9, 2026, 6:11 AM
Pneumatic and instrumentation systems are both listed applications for this fitting, so that use case fits right in. The tube OD is 0.25 inch and the male NPT thread is 1/4-18, which is standard for a lot of gauge and panel connections. Just keep in mind that if you're running plastic tubing rather than copper or aluminum, you may need an insert to keep the tubing from collapsing under the compression sleeve. Metal tubing won't need that.
