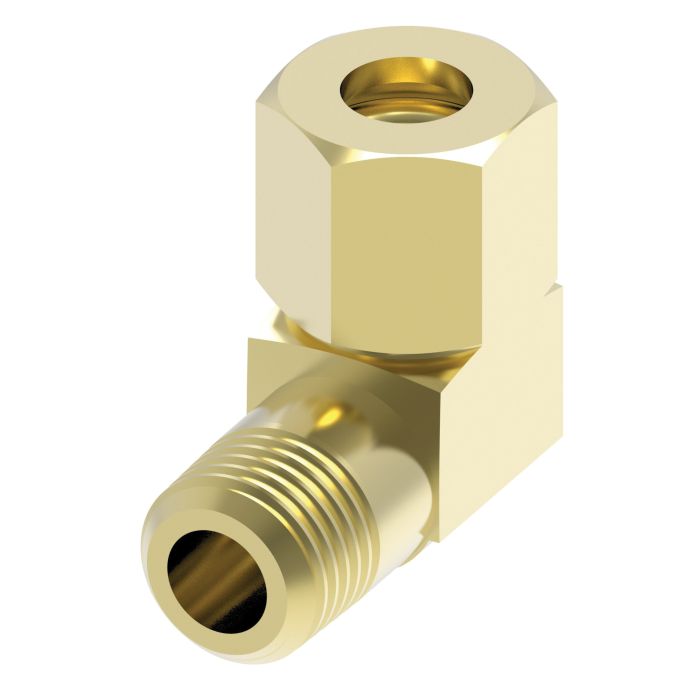

main product photo

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss / Eaton Compression 90 Male Elbow is a reliable solution engineered for instrumentation hydraulic and pneumatic systems. This fitting is made from CA360 brass offering superior durability and resistance to corrosion. It accommodates a tube O.D. of 0.375 inches and a 1/4-18 male NPT thread making it compatible with plastic copper and aluminum tubing. The fitting operates effectively within a pressure range up to 2000 psi and a temperature range from -65F to +250F with metal tubing. If plastic tubing is used ensure compatibility with the tubing's temperature range. This elbow fitting meets ASA ASME and SAE standards and is easy to assemble without the need for flaring. It provides fair resistance to vibration and is available with either long or short nuts for versatile applications. Critical assembly instructions include cutting the tubing sliding the nut and sleeve bottoming the tubing on the fitting shoulder lubricating threads and tightening the nut per specifications.

Supplier Part Number: 69X6

ECCN: EAR99

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
0.75
N
0.94
Supplier Part Number
69X6
Thread 1
1/4-18
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HR36, Alternate Part Number MI-00334104, Alternate Part Number MINO-00925F73386
Product Weight
0.09 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X6X2 Brass Compression To Male NPT 90 Elbow

0.375

1/8-27

0.69

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X8 Brass Compression To Male NPT 90 Elbow

0.5

3/8-18

0.94

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X8X8 Brass Compression To Male NPT 90 Elbow

0.5

1/2-14

0.94

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X10 Brass Compression To Male NPT 90 Elbow

0.625

1/2-14

1.06

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.13 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X2 Brass Compression To Male NPT 90 Elbow

0.125

1/8-27

0.6

0.67

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.19 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X3 Brass Compression To Male NPT 90 Elbow

0.1875

1/8-27

0.62

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X4 Brass Compression To Male NPT 90 Elbow

0.25

1/8-27

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X4X4 Brass Compression To Male NPT 90 Elbow

0.25

1/4-18

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.31 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X5X4 Brass Compression To Male NPT 90 Elbow

0.3125

1/4-18

0.69

0.84

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X6 Brass Compression To Male NPT 90 Elbow

0.375

1/4-18

0.75

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X6X6 Brass Compression To Male NPT 90 Elbow

0.375

3/8-18

0.84

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X6X8 Brass Compression To Male NPT 90 Elbow

0.375

1/2-14

1.06

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X8X4 Brass Compression To Male NPT 90 Elbow

0.5

1/4-18

0.84

0.94

Product Questions & Answers (2)

Question by: Jean M on Dec 12, 2025, 5:16 PM
fitting says it works with plastic tubing but also lists a temp range for metal -- does that mean plastic tubing has its own separate limits I need to worry about?
Answer by: Customer Support on Dec 14, 2025, 6:40 AM
Right, those two aren't the same. The minus 65 to 250 degree Fahrenheit range applies when you're running metal tubing like copper or aluminum. Plastic tubing has its own thermal limits depending on the material, so you'd need to verify that your specific plastic tubing can handle whatever temperatures your system runs at before calling it good.
Question by: Shane G on May 11, 2025, 10:44 AM
got a 3/8 tube line i need to turn 90 into a 1/4 npt port. is this the right elbow?
Answer by: Customer Support on May 13, 2025, 7:58 AM
For a 90 degree turn from 3/8 inch tube OD to a 1/4-18 male NPT port, this fitting matches that size combo. It’s a compression style elbow meant for plastic, copper, or aluminum tubing and it uses a 1/4-18 male NPT thread on the pipe side.
