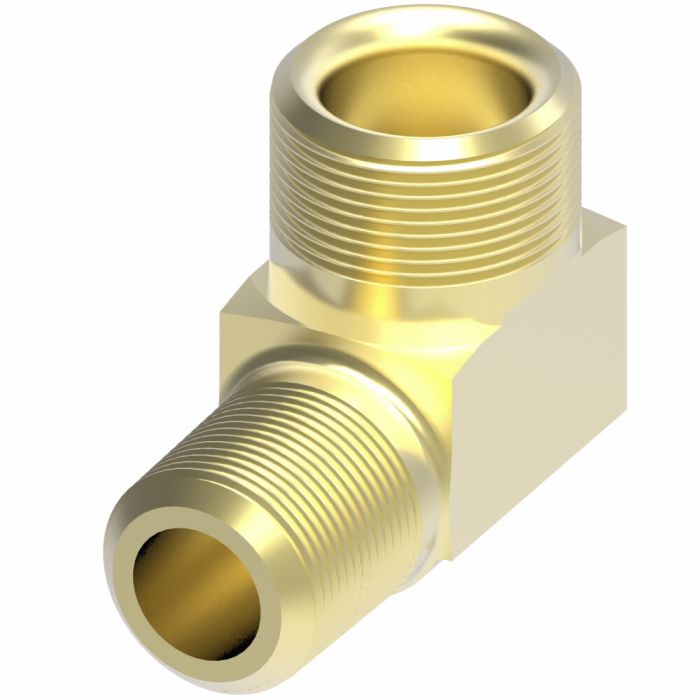

main product photo

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

Manufactured from brass, this 90-degree compression elbow from Eaton Aeroquip transitions a 0.50-inch tube OD to a 1/4-18 male NPT thread, making it a practical choice for connecting plastic, copper, or aluminum tubing in hydraulic and fluid system installations. The compression-style connection provides a reliable mechanical grip on the tubing without requiring soldering or flaring.

The Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow is cataloged under Eaton Aeroquip catalog number C1HR40 and is designed for use in systems where a direction change is required at a threaded port. The 90-degree configuration allows routing in confined spaces where straight fittings would not accommodate the tubing path.

SKU: 69X8X4

Supplier Part Number (MPN): 69X8X4

Alternate Part Numbers: C1HR40, MI-00334123, MINO-00925F73393

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
0.84
N
0.94
Supplier Part Number
69X8X4
Thread 1
1/4-18
Tube O.D.
0.50
Tube O.D.
0.5
Alternate Part Numbers
Alternate Part Number C1HR40, Alternate Part Number MI-00334123, Alternate Part Number MINO-00925F73393
Product Weight
0.16 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X6X2 Brass Compression To Male NPT 90 Elbow

0.375

1/8-27

0.69

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X8 Brass Compression To Male NPT 90 Elbow

0.5

3/8-18

0.94

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X8X8 Brass Compression To Male NPT 90 Elbow

0.5

1/2-14

0.94

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X10 Brass Compression To Male NPT 90 Elbow

0.625

1/2-14

1.06

1.31

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.13 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X2 Brass Compression To Male NPT 90 Elbow

0.125

1/8-27

0.6

0.67

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.19 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X3 Brass Compression To Male NPT 90 Elbow

0.1875

1/8-27

0.62

0.69

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

69X4 Brass Compression To Male NPT 90 Elbow

0.25

1/8-27

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X4X4 Brass Compression To Male NPT 90 Elbow

0.25

1/4-18

0.62

0.75

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.31 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X5X4 Brass Compression To Male NPT 90 Elbow

0.3125

1/4-18

0.69

0.84

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X6 Brass Compression To Male NPT 90 Elbow

0.375

1/4-18

0.75

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

69X6X6 Brass Compression To Male NPT 90 Elbow

0.375

3/8-18

0.84

0.94

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

69X6X8 Brass Compression To Male NPT 90 Elbow

0.375

1/2-14

1.06

1.12

Brass Compression Fitting For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

69X8X4 Brass Compression To Male NPT 90 Elbow

0.5

1/4-18

0.84

0.94

Product Questions & Answers (2)

Question by: Warren R on Nov 6, 2025, 8:02 AM
Hey, can this elbow fitting handle hooking up some aluminum tubing in my garage?
Answer by: Customer Support on Nov 7, 2025, 9:59 AM
Absolutely. This brass compression fitting is designed for use with plastic, copper, and aluminum tubing, so it should work just fine in your garage setup.
Question by: Brenda M on Nov 22, 2025, 6:41 PM
does this fitting work on half inch OD plastic tubing, or is it only rated for copper and aluminum?
Answer by: Customer Support on Nov 23, 2025, 6:44 PM
Half-inch OD plastic tubing is fully supported by this fitting, right alongside copper and aluminum. The compression design grips the outside diameter of the tube, so the material just needs to measure out to that 0.50 inch OD to get a proper seat. All three tube types are explicitly covered under this part.
