Brass Compression Sleeve For Copper & Aluminum Tubing, 0.75 Inch Tube OD

Description & Features

Constructed from quality brass this compression sleeve is designed for seamless assembly without the need for flaring. Compatible with copper and aluminum tubing it is unsuitable for steel tubing applications. The sleeve is intended for air oil and water service and it performs reliably under vacuum conditions. With a pressure rating of 188 PSI for 0.75-inch tubing bolstered by a 4:1 safety factor (750 PSI burst) it ensures durable and safe usage. The temperature range spans from -65F to 250F making it suitable for a variety of industrial environments.

MPN: 260X12

Supplier Part Number: 260X12

Specifications

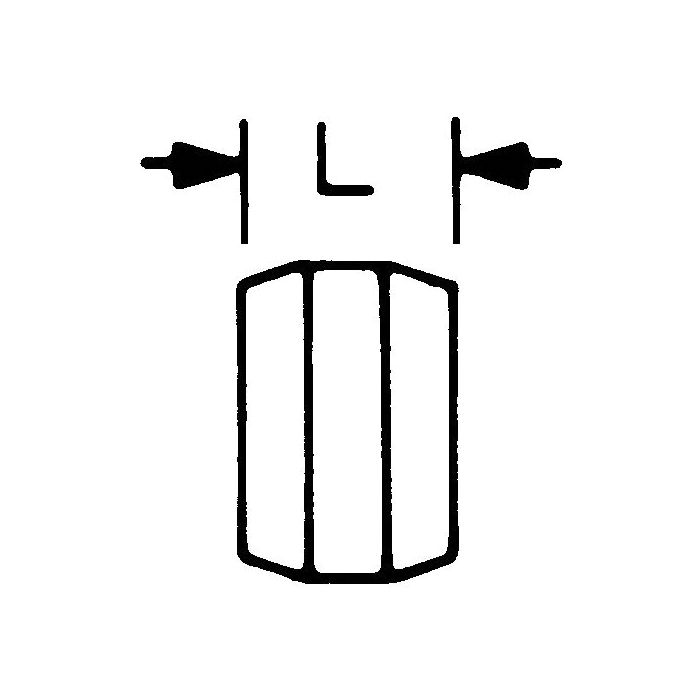

Brand ACR Industries	Connection Size 1 3/4 in	Fitting Type Sleeve	For Use With Copper and Aluminum Tubing	l Dimensions 0.44 in	Material Brass	Material Construction Brass	Sg Pressure Rating 1/8 in to 1/4 in Tubing Sizes: 500 psi with 4:1 Safety Factor (2000 psi Burst), 5/16 in to 1/2 in Tubing Sizes: 250 psi with 4:1 Safety Factor (1000 psi Burst), 3/4 in to 1 in Tubing Sizes: 188 psi with 4:1 Safety Factor (750 psi Burst)

Product Questions & Answers (2)

Question by: Bobby T on Mar 20, 2026, 7:29 AM

Been using 3/4 inch copper on an air line setup and need a sleeve to go with my compression fitting. This brass one gonna work or do I need something different?

Answer by: Customer Support on Mar 22, 2026, 6:58 AM

Copper tubing is exactly what this sleeve is built for. It pairs with standard compression fittings and requires no flaring, so assembly is pretty straightforward. For air service at 3/4 inch, you're looking at a 188 PSI working pressure with a 750 PSI burst rating behind it, so for most shop air applications that's plenty of headroom.

Question by: Rick A on Nov 5, 2025, 8:58 AM

got some 3/4 copper line im tying into, is this the right sleeve or do i need to flare the tube first

Answer by: Customer Support on Nov 7, 2025, 6:05 AM

For 3/4 inch tube OD copper, this sleeve is meant to be assembled without flaring. It is a compression sleeve used with copper or aluminum tubing to make the connection.
