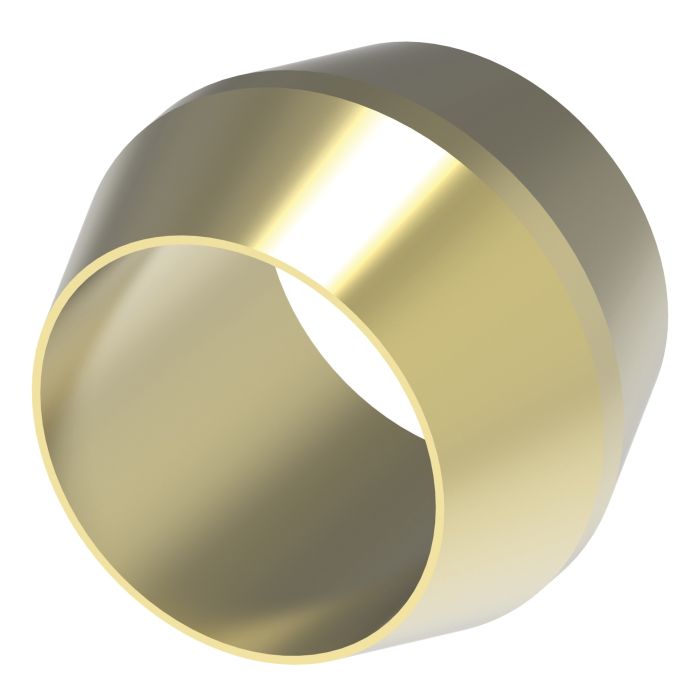

main product photo

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.63 Inch Tube OD

Ask A Question

Description & Features

Designed for precise fitting and secure connections this Danfoss / Eaton Compression Sleeve is essential for various instrumentation hydraulic and pneumatic systems. Made from durable CA360 brass it supports plastic copper and aluminum tubing with an outer diameter of 0.625 inches offering versatility in multiple applications.

With a working pressure up to 2000 psi this component withstands demanding conditions while ensuring safety with a 4:1 factor. The temperature range spans from -65F to +250F with metal tubing making it suitable for extreme environments. If used with compatible plastic tubing the respective tubing temperature range should be observed.

This sleeve meets ASA ASME and SAE standards and is available on special order for use with flammable liquids. Easy to assemble without flaring it comes in various styles and sizes providing a cost-effective solution.

For optimal functionality it offers fair resistance to vibration with the option of using a long nut for enhanced resistance. Lubricate and assemble according to the specified instructions for reliable performance.

MPN: 60X10

Supplier Part Number: 60X10

Specifications

D
0.63
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
F
0.72
L
0.38
Supplier Part Number
60X10
Tube O.D.
0.63
Tube O.D.
0.625
Alternate Part Numbers
Alternate Part Number C1HQ64, Alternate Part Number MI-00333900, Alternate Part Number MINO-00925F73307
Product Weight
0.01 lbs

Related Documents

Similar Products

Model Number Tube O.D. D F L Price Action
Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.13 Inch Tube OD

60X2 Brass Compression Tube Sleeve

0.125

0.13

0.19

0.19

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.63 Inch Tube OD

60X10 Brass Compression Tube Sleeve

0.625

0.63

0.72

0.38

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.19 Inch Tube OD

60X3 Brass Compression Tube Sleeve

0.1875

0.19

0.27

0.22

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.25 Inch Tube OD

60X4 Brass Compression Tube Sleeve

0.25

0.26

0.34

0.25

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.31 Inch Tube OD

60X5 Brass Compression Tube Sleeve

0.3125

0.32

0.41

0.25

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.38 Inch Tube OD

60X6 Brass Compression Tube Sleeve

0.375

0.38

0.47

0.25

Brass Compression Sleeve For Plastic, Copper, & Aluminum Tubing, 0.50 Inch Tube OD

60X8 Brass Compression Tube Sleeve

0.5

0.51

0.59

0.38

Product Questions & Answers (1)

Question by: Travis Y on Apr 28, 2025, 10:31 AM
Got some copper tubing running at around 1800 psi in a pneumatic setup, will this sleeve hold up to that kind of pressure?
Answer by: Customer Support on Apr 29, 2025, 1:51 PM
At 1800 psi you'd have plenty of headroom. The working pressure rating on this sleeve is 2000 psi, and it carries a 4:1 safety factor, so that application falls well within spec. It's made from CA360 brass and fits tubing with a 0.625 inch outer diameter, so just make sure your copper tubing matches that OD and you should be in good shape.
