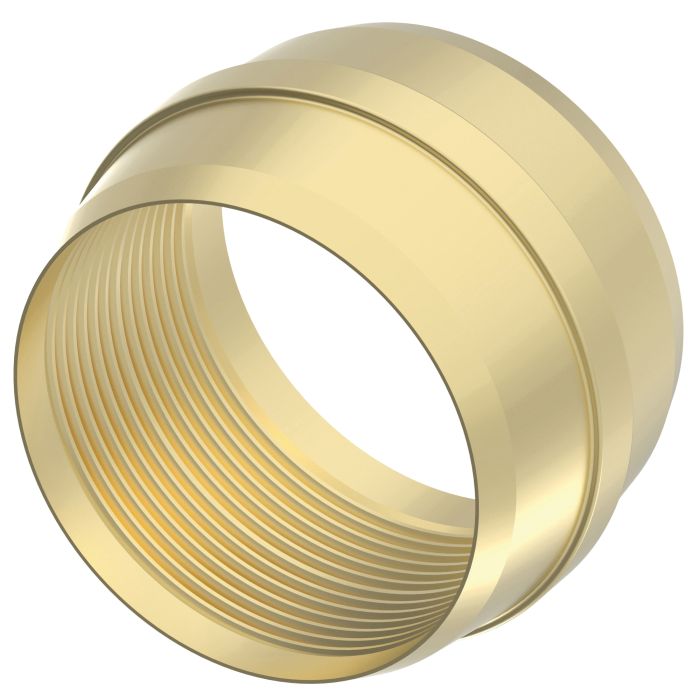

main product photo

Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD Sleeve

Ask A Question

Description & Features

Experience reliable performance with our Brass DOT Approved Air Brake Tube Fitting 0.63 Inch Tube OD Sleeve. Manufactured from CA360 Brass this fitting is built to withstand a temperature range of -40F to +200F.

This fitting accommodates NT100 Nylon Tubing - SAE J844 Type A and B ensuring compatibility for various applications. No tube preparation or flaring is required simplifying installation processes.

Designed for a maximum operating pressure of 150 psi it meets SAE and DOT FMVSS 571.106 specifications. The fitting is assembled by cutting tubing to length sliding the nut and sleeve onto the tubing and tightening to the specified torque. A built-in tube support enhances stability.

With features that include fair vibration resistance and easy reassembly it guarantees efficient and durable performance. Disassembling involves removing the nut and pulling the tubing out making maintenance straightforward.

MPN: 1460X10

Supplier Part Number: 1460X10

Specifications

C
0.75
D
0.64
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
L
0.48
Supplier Part Number
1460X10
Tube O.D.
0.63
Tube O.D.
0.625
Alternate Part Numbers
Alternate Part Number C1HM71, Alternate Part Number MI-00355644, Alternate Part Number MINO-00925F89626
Product Weight
0.01 lbs

Related Documents

Similar Products

Model Number Tube O.D. C D L Price Action
Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD Sleeve

1460X10 Brass DOT Air Brake Sleeve

0.625

0.745

0.635

0.48

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD Sleeve

1460X4 Brass DOT Air Brake Sleeve

0.25

0.359

0.256

0.3

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD Sleeve

1460X6 Brass DOT Air Brake Sleeve

0.375

0.479

0.384

0.39

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD Sleeve

1460X8 Brass DOT Air Brake Sleeve

0.5

0.625

0.509

0.43

Product Questions & Answers (3)

Question by: Scott M on Mar 16, 2026, 6:53 AM
got 0.63 OD nylon air brake tube, do i need to flare it or prep the end before this sleeve goes on?
Answer by: Customer Support on Mar 17, 2026, 7:29 AM
No tube prep is needed on this one. You cut the nylon tubing to length, slide the nut and sleeve onto the tube, then tighten to the specified torque, and the fitting’s built-in tube support helps keep everything stable.
Question by: Sheila S on Aug 14, 2025, 12:36 PM
does this fitting work with nylon air brake tubing, or do i need something different for that?
Answer by: Customer Support on Aug 16, 2025, 6:02 AM
NT100 Nylon Tubing meeting SAE J844 Type A and B is exactly what this sleeve is built for. No flaring or tube prep needed either. Just cut your tubing to length, slide the nut and sleeve on, and torque it down. The built-in tube support keeps things stable once it's all assembled.
Question by: Cindy E on May 11, 2025, 6:24 AM
Will this fitting hold up ok in a truck's air brake system?
Answer by: Customer Support on May 12, 2025, 11:52 AM
This brass fitting is DOT approved for air brake systems and meets SAE and DOT FMVSS 571.106 specs, so it's made to handle the pressures and conditions you'd find in that application.
