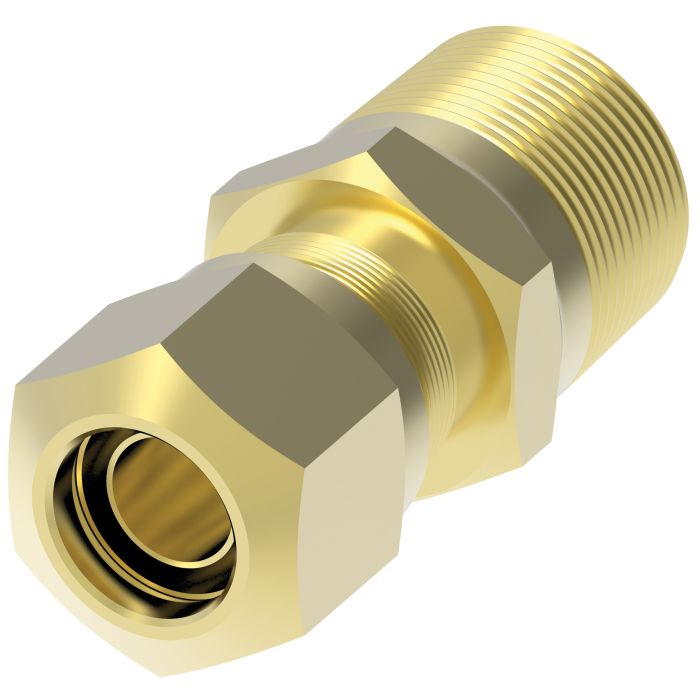

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, Straight

Ask A Question

Description & Features

Enhance the reliability of your air brake system with this DOT-approved fitting. Designed to meet SAE and DOT FMVSS 571.106 standards the brass construction provides durability and a long service life.

This fitting features a 0.50-inch tube O.D. to 3/8-18 male NPT connection ensuring compatibility with NT100 Nylon Tubing (SAE J844 Type A and B). No tube preparation or flaring is required simplifying assembly and reducing installation time.

Built-in tube support maintains structural integrity and the fitting's operating temperature range spans from -40F to +200F accommodating various industrial environments. With a maximum operating pressure of 150 psi this fitting offers fair resistance to vibration.

Temperature range: -40F to +200F. Fair resistance to vibration ensures reliable performance.

For detailed assembly instructions follow these steps: Cut tubing slide nut and sleeve onto tubing insert into fitting body and tighten nut to appropriate torque. For reassembly ensure tubing and insert are properly seated before threading the nut onto the fitting body.

Supplier Part Number: 1468X8

MPN: EAR99

Specifications

Brand
Danfoss
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MPT, Tube
Connection Type 1
Tube OD
Connection Type 2
Male Threaded
Dimension Standards
SAE 100102BA/100103BA
Finish
Nickel-Plated
Fitting Type
Connector
For Use With
Air Brake Nylon Tubings
Hex Size
11/16 in
Material
Brass
Material Construction
Brass
Series
1468X Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18

Similar Products

Model Number Tube O.D. Thread Size L Price Action
Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, Straight

1468X10 Brass DOT NPT Tube Fitting

0.625

1/2-14

1.57

Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 3/8-18 Male NPT, Straight

1468X10X6 Brass DOT NPT Tube Fitting

0.625

3/8-18

1.38

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, Straight

1468X4 Brass DOT NPT Tube Fitting

0.25

1/8-27

0.88

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, Straight

1468X4X4 Brass DOT NPT Tube Fitting

0.25

1/4-18

1.09

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, Straight

1468X6 Brass DOT NPT Tube Fitting

0.375

1/4-18

1.2

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, Straight

1468X6X6 Brass DOT NPT Tube Fitting

0.375

3/8-18

1.23

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, Straight

1468X6X8 Brass DOT NPT Tube Fitting

0.375

1/2-14

1.42

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, Straight

1468X8X8 Brass DOT NPT Tube Fitting

0.5

1/2-14

1.51

Product Questions & Answers (2)

Question by: Billy W on Apr 6, 2025, 4:24 PM
does this fitting work with regular nylon air brake tubing or does it need something special?
Answer by: Customer Support on Apr 8, 2025, 8:56 AM
NT100 Nylon Tubing is what it's built for, specifically tubing that meets SAE J844 Type A and B specs. As long as your tubing falls under that standard, you're good to go. No flaring or special prep needed either. Just cut the tubing, slide the nut and sleeve on, insert it into the fitting body, and tighten the nut down. Pretty straightforward job.
Question by: Earl B on Sep 5, 2025, 6:03 PM
got 1/2 inch nylon air brake tube, will this go right into it and thread into a 3/8-18 npt port?
Answer by: Customer Support on Sep 7, 2025, 5:11 PM
It’s a straight brass connector that takes 0.50 inch tube O.D. on one side and 3/8-18 male NPT on the other. It’s called out for use with NT100 nylon tubing meeting SAE J844 Type A and B.
