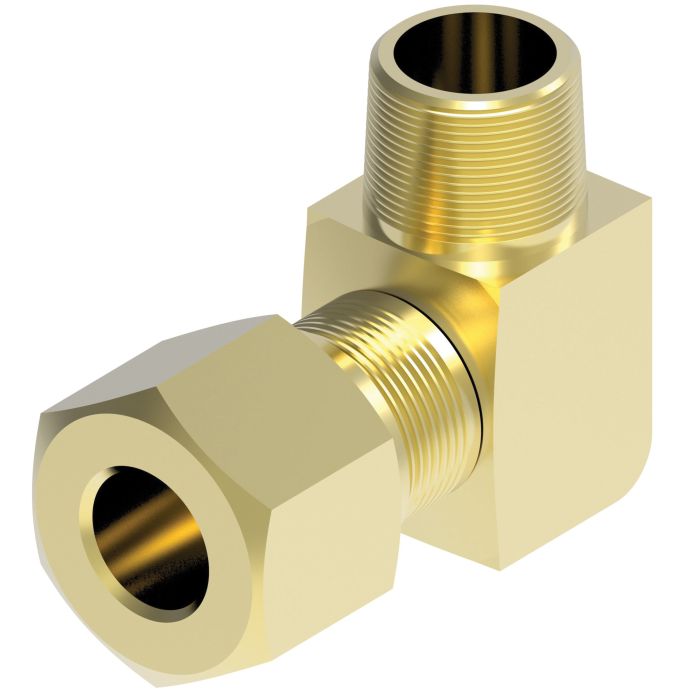

main product photo

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

The Brass DOT Approved Air Brake Tube Fitting 0.38 Inch Tube OD to 1/4-18 Male NPT 90 deg Elbow ensures reliable connections in air brake systems. Engineered for NT100 Nylon Tubing - SAE J844 Type A and B it delivers robust performance with a temperature range of -40F to +200F.

Constructed from CA360 Brass this elbow fitting meets SAE and DOT FMVSS 571.106 standards. It features an easy assembly process eliminating the need for tube preparation or flaring. The built-in tube support adds durability to the connection.

Capable of handling a maximum operating pressure of 150 psi it offers fair vibration resistance. For optimal performance ensure proper torque settings during assembly and reassembly.

MPN: C1HH83

Supplier Part Number: 1469X6

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
M
0.80
N
0.93
Supplier Part Number
1469X6
Thread 1
1/4-18
Tube O.D.
0.38
Tube O.D.
0.375
Alternate Part Numbers
Alternate Part Number C1HH83, Alternate Part Number MI-00354330, Alternate Part Number MINO-00015X03106, Alternate Part Number MINO-00925F88504
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 M N Price Action
Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X10 Brass DOT Tube To Male NPT 90 Elbow

0.625

1/2-14

1.1

1.25

Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1469X10X6 Brass DOT Tube To Male NPT 90 Elbow

0.625

3/8-18

1.01

1.06

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1469X4 Brass DOT Tube To Male NPT 90 Elbow

0.25

1/8-27

0.63

0.67

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1469X4X4 Brass DOT Tube To Male NPT 90 Elbow

0.25

1/4-18

0.69

0.88

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1469X6 Brass DOT Tube To Male NPT 90 Elbow

0.375

1/4-18

0.8

0.93

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1469X6X6 Brass DOT Tube To Male NPT 90 Elbow

0.375

3/8-18

0.85

0.92

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X6X8 Brass DOT Tube To Male NPT 90 Elbow

0.375

1/2-14

0.95

1.11

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1469X8 Brass DOT Tube To Male NPT 90 Elbow

0.5

3/8-18

0.94

1

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X8X8 Brass DOT Tube To Male NPT 90 Elbow

0.5

1/2-14

1.04

1.19

Product Questions & Answers (1)

Question by: Connie W on May 10, 2025, 8:59 PM
got nylon air brake line thats 3/8 OD, will this elbow screw right into a 1/4-18 npt port?
Answer by: Customer Support on May 12, 2025, 6:03 PM
For a 3/8 inch tube OD run, this fitting is made to connect NT100 nylon tubing (SAE J844 Type A and B) to a 1/4-18 male NPT threaded port, using a 90 degree elbow to turn the line.
