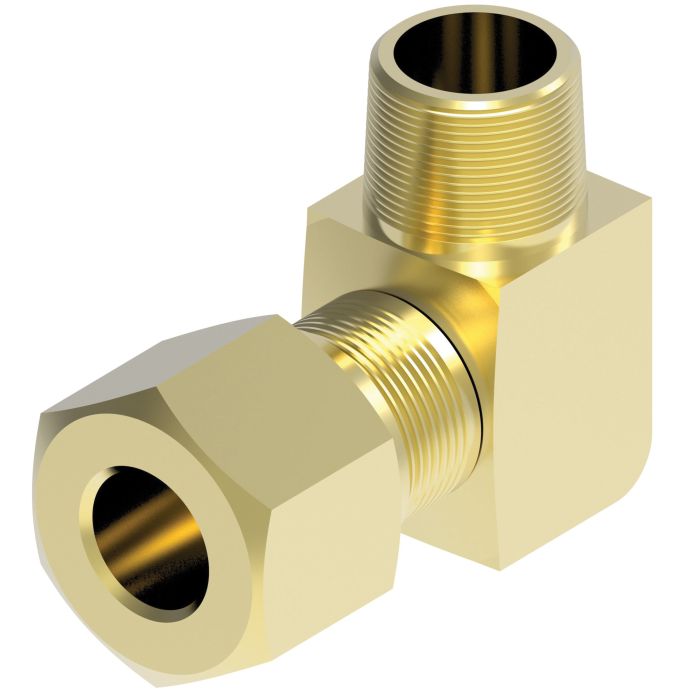

main product photo

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

The 0.50 Inch Tube OD to 3/8-18 Male NPT 90 deg Elbow by Danfoss Power Solutions (Aeroquip Inc-Alternate) ensures compliance with SAE and DOT FMVSS 571.106 standards. This fitting is designed for use with NT100 nylon tubing specifically SAE J844 Type A and B with a maximum operating pressure of 150 psi.

Constructed from CA360 brass this fitting offers a temperature range of -40F to +200F and fair vibration resistance. It features a built-in tube support providing easy assembly without tube preparation or flaring.

To assemble cut the tubing to the desired length slide the nut and sleeve on the tubing and insert the tubing into the fitting. Ensure the tubing is bottomed in the fitting body before tightening the nut. The reassembly process involves pushing the tubing and insert back into the fitting body until it bottoms and tightening the nut as specified.

Supplier Part Number: 1469X8

MPN: 1469X8

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MNPT, Tube
Connection Type 1
Tube OD
Connection Type 2
Male NPTF
Dimension Standards
SAE 100103BA/100202BA
Fitting Type
90 deg Elbow
For Use With
Air Brake Nylon Tubings
m Dimensions
0.94 in
Material
Brass
Material Construction
Brass
n Dimensions
1 in
Series
1469X Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18

Similar Products

Model Number Tube O.D. Thread Size M N Price Action
Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X10 Brass DOT Tube To Male NPT 90 Elbow

0.625

1/2-14

1.1

1.25

Brass DOT Approved Air Brake Tube Fitting, 0.63 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1469X10X6 Brass DOT Tube To Male NPT 90 Elbow

0.625

13/16-18

1.01

1.06

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1469X4 Brass DOT Tube To Male NPT 90 Elbow

0.25

1/8-27

0.63

0.67

Brass DOT Approved Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1469X4X4 Brass DOT Tube To Male NPT 90 Elbow

0.25

1/4-18

0.69

0.88

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1469X6 Brass DOT Tube To Male NPT 90 Elbow

0.375

1/4-18

0.8

0.93

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1469X6X6 Brass DOT Tube To Male NPT 90 Elbow

0.375

3/8-18

0.85

0.92

Brass DOT Approved Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X6X8 Brass DOT Tube To Male NPT 90 Elbow

0.375

1/2-14

0.95

1.11

Brass DOT Approved Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1469X8X8 Brass DOT Tube To Male NPT 90 Elbow

0.5

1/2-14

1.04

1.19

Product Questions & Answers (1)

Question by: Dustin W on Mar 15, 2026, 6:35 PM
fitting says DOT approved but what standard exactly does it meet? need to know for compliance paperwork on our rig builds
Answer by: Customer Support on Mar 17, 2026, 6:47 AM
It carries DOT FMVSS 571.106 approval and also meets SAE standards. Both are built into the design, so it qualifies for air brake system use on commercial vehicle builds without needing additional certification chasing on your end.
