main product photo

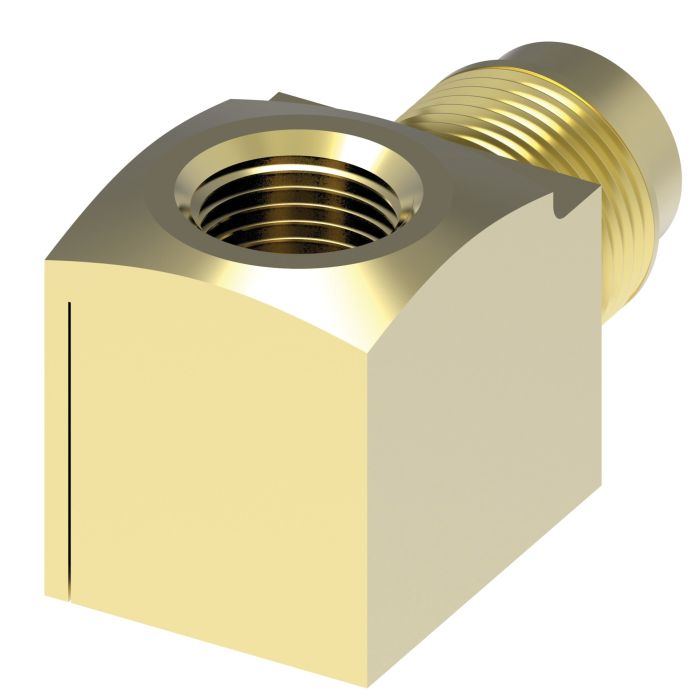

Brass Adapter, 1/8-27 Female NPT To 7/16-20 Male SAE 45 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss / Eaton SAE 45 Flare 90 Female Elbow is engineered for various industrial applications including LP and natural gas instrumentation refrigeration hydraulic and pneumatic systems. Crafted from high-quality brass it ensures durability and reliable performance.

This adapter features a 1/8-27 Female NPT fitting on one side and a 7/16-20 Male SAE 45 flare on the other designed to facilitate connections between dissimilar fittings. It operates efficiently in temperatures ranging from -65F and up.

End Type 1 is NPTF and End Type 2 is SAE making it versatile for a wide range of setups. The drop dimension is 0.4700 and the tube outer diameter is 0.25 ensuring a secure fit. Precision-engineered threads 1/8-27 and 7/16-20 provide tight seals without the need for additional sealant.

Supplier Part Number: 50X4

Specifications

Alternate Part Numbers
Alternate Part Number C1HQ48, Alternate Part Number MI-00333270, Alternate Part Number MINO-00015X07020, Alternate Part Number MINO-00925F73085
Application
LP and natural gas,
flammable liquids (special
order), instrumentation,
refrigeration, power
steering, hydraulic and
pneumatic systems.
Drop Dimension
0.47
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.13
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE
M
0.88
Minimum Working Temperature
-65
N
0.47
Supplier Part Number
50X4
Thread 1
1/8-27
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.08 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 M N Price Action
Brass Adapter, 1/8-27 Female NPT To 7/16-20 Male SAE 45 deg Flare, 90 deg Elbow

50X4 Brass Female NPT To Male SAE 90 Elbow

0.25

1/8-27

7/16-20

0.88

0.47

Brass Adapter, 1/4-18 Female NPT To 5/8-18 Male SAE 45 deg Flare, 90 deg Elbow

50X6 Brass Female NPT To Male SAE 90 Elbow

0.38

1/4-18

5/8-18

1.09

0.69

Product Questions & Answers (1)

Question by: Travis G on Jun 7, 2025, 8:46 PM
What kind of stuff can I use this elbow adapter for?
Answer by: Customer Support on Jun 9, 2025, 6:56 AM
This brass elbow is good for LP and natural gas setups, refrigeration, power steering, and both hydraulic and pneumatic systems. It can handle flammable liquids too, but that's a special order thing.
