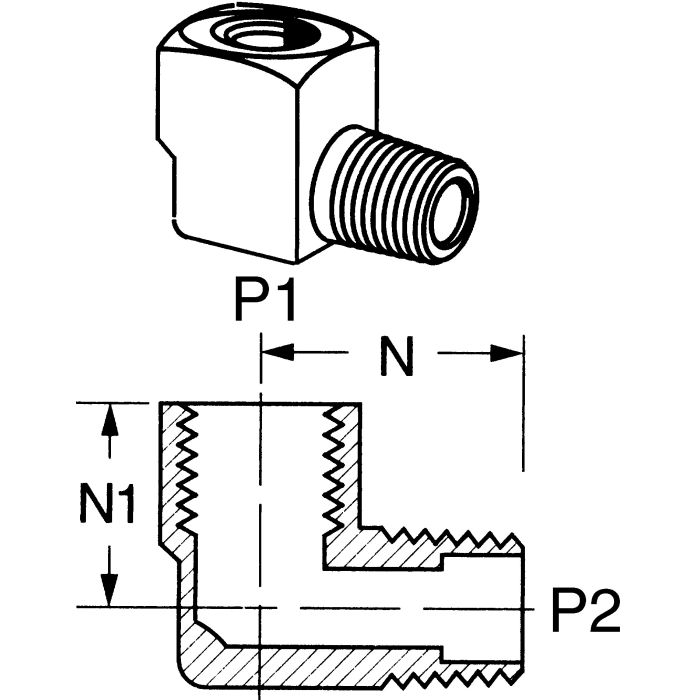

Constructed from brass, this 90-degree street elbow connects 3/8-18 NPTF female to 3/8-18 NPTF male threads, allowing a direction change within tight assemblies where a standard elbow would not fit. The street configuration, with one male and one female end, eliminates the need for an additional coupling in many inline routing situations.
The Brass Adapter, 3/8-18 Female NPT To 3/8-18 Male NPT, 90 deg Elbow is rated for use down to -65°F, making it suitable across a wide range of operating environments. Brass construction supports compatibility with grease, refrigeration, instrumentation, and hydraulic systems, with fuel, LP, and natural gas configurations available on special order. Catalog number C1GU86 may be used for cross-reference purposes.
SKU: IG3400X6
Supplier Part Number (MPN): 3400X6
|
Application
Grease, refrigeration,
instrumentation and hydraulic systems. Fuel, LP and natural gas available on special order. instrumentation and hydraulic systems. |
Drop Dimension
0.98
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.38
|
End Size 2
0.38
|
End Type 1
NPTF
|
End Type 2
NPTF
|
Minimum Working Temperature
-65
|
N
0.97
|
N1
0.78
|
Supplier Part Number
3400X6
|
Thread 1
3/8-18
|
Thread 2
3/8-18
|
Thread Sealant
No
|
Product Weight
0.18 lbs
|
