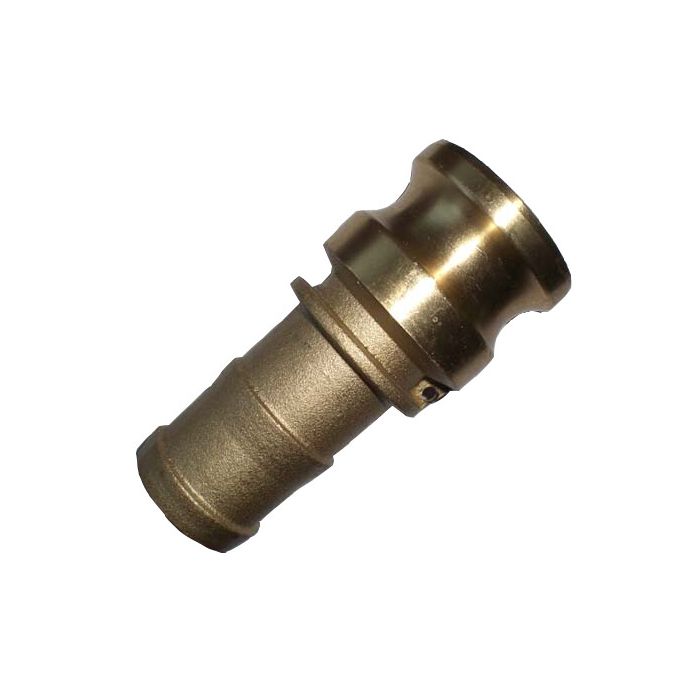

Brass Cam & Groove Adapter, Male Half, 1-1/2 Inch Hose Shank

Description & Features

Crafted for robust industrial applications, this Brass Cam & Groove Adapter offers reliable performance with a 1-1/2 inch hose shank. Constructed from durable brass, it features stainless steel cam levers and plated steel pins, rings, and safety clips, ensuring longevity and resilience in demanding environments. The adapter is designed for liquid transfer applications and adheres to standard A-A-59326, providing interchangeability with compatible fittings. It boasts a pressure rating of 150 PSI for sizes 1/2" to 4".

To couple, simply slide the adapter into the coupler and press the cam levers down with normal hand pressure. Uncoupling is just as straightforward by lifting the cam arms. Note that this adapter should never be used with compressed air or steam. With a reliable seal made from Buna-N, this component is tailored for seamless integration into your industrial setup.

SKU: BLE-150

Supplier Part Number (MPN): BLE-150

Alternate Part Numbers: C1MN62

Specifications

Brand Fuzhou Hengsheng Hardware	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Male Adapter, Hose Shank	Connection Type 1 Male Adapter	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Brass	Material Construction Brass	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Product Questions & Answers (2)

Question by: Marvin C on Jan 13, 2026, 2:49 PM

trying to swap out an old camlock, is this the male half with a 1-1/2 hose shank?

Answer by: Customer Support on Jan 15, 2026, 6:35 AM

It is the male cam and groove adapter with a 1-1/2 inch hose shank. It is built to the A-A-59326 interchange standard, so it matches other cam and groove parts made to that same standard.

Question by: Gene E on Feb 24, 2026, 2:29 PM

I need somethin' that'll hook up to a hose – is this what I'm lookin' for?

Answer by: Customer Support on Feb 25, 2026, 3:29 PM

This adapter is indeed designed to connect to a 1-1/2 inch hose, using a shank fitting. It's the male half of a cam and groove setup, so you'll need a female coupler to complete the connection.
