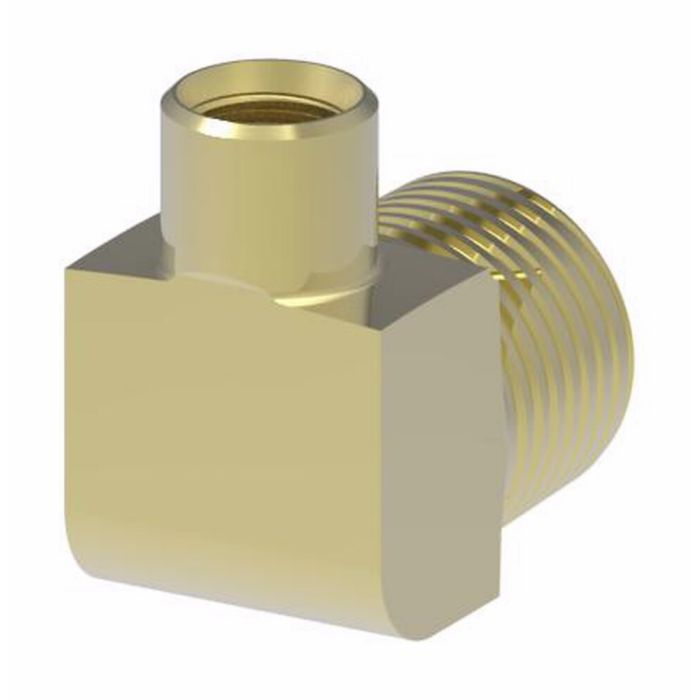

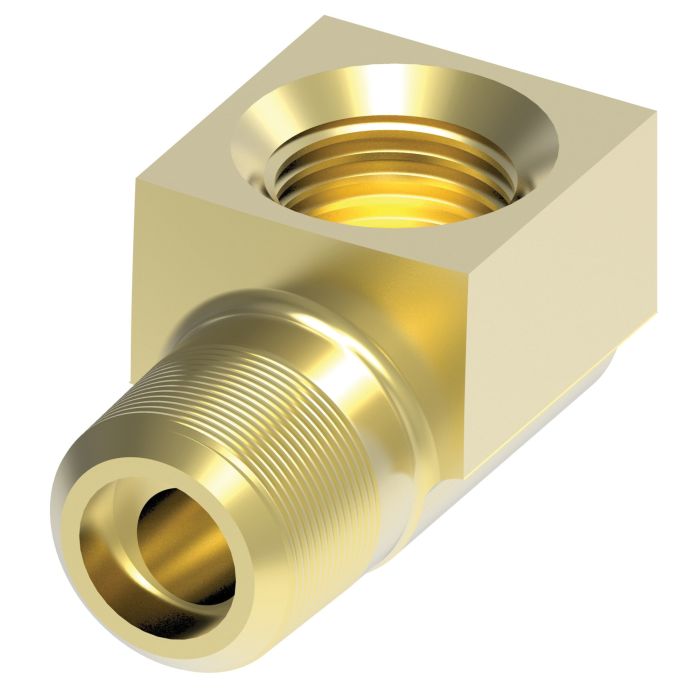

Manufactured in brass, this 90-degree elbow adapter connects a 1/2-14 Male NPT thread to a 0.50-inch Female 42-degree inverted flare, making it well suited for hydraulic brake circuits, power steering lines, fuel systems, and transmission cooler lines. The inverted flare seating angle provides a reliable mechanical seal without requiring additional sealant at the flare connection.
Sourced from Eaton Aeroquip, the Brass Adapter, 1/2-14 Male NPT To 0.50 Inch Female 42 deg Inverted Flare, 90 deg Elbow is also applicable to instrumentation and hydraulic systems, as well as LP and natural gas installations on special order. The 90-degree elbow configuration is useful where space constraints or routing angles demand a directional change at the fitting.
SKU: 402X8X8
Supplier Part Number (MPN): 402X8X8
Alternate Part Numbers: C1HP74
|
Alternate Part Numbers
C1HP74
|
Application
Hydraulic brake, power
steering, fuel lines and transmission cooler lines, LP and natural gas (special order). instrumentation and hydraulic systems. |
Drop Dimension
1.22
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.50
|
End Size 2
0.75
|
End Type 1
NPTF
|
End Type 2
Inverted
|
L
1.67
|
M
0.66
|
Minimum Working Temperature
-65
|
Supplier Part Number
402X8X8
|
Thread 1
1/2-14
|
Thread Sealant
No
|
Tube O.D.
0.50
|
Tube O.D.
0.5
|
Product Weight
0.25 lbs
|
| Model Number | Tube O.D. | Thread 1 | L | M | Price | Action |
|---|---|---|---|---|---|---|
402X3 Brass Male NPT To Female 42 Inv 90 Elbow |
0.1875 |
1/8-27 |
0.85 |
0.27 |
|
|
402X4 Brass Male NPT To Female 42 Inv 90 Elbow |
0.25 |
1/8-27 |
0.92 |
0.33 |
|
|
402X4X4 Brass Male NPT To Female 42 Inv 90 Elbow |
0.25 |
1/4-18 |
1.09 |
0.28 |
|
|
402X5 Brass Male NPT To Female 42 Inv 90 Elbow |
0.3125 |
1/8-27 |
0.98 |
0.47 |
|
|
402X5X4 Brass Male NPT To Female 42 Inv 90 Elbow |
0.31 |
1/4-18 |
0.45 |
|
|
|
402X6 Brass Male NPT To Female 42 Inv 90 Elbow |
0.375 |
1/4-18 |
1.32 |
0.53 |
|
|
402X8 Brass Male NPT To Female 42 Inv 90 Elbow |
0.5 |
3/8-18 |
1.48 |
0.59 |
|
|
402X8X8 Brass Male NPT To Female 42 Inv 90 Elbow |
0.5 |
1/2-14 |
1.67 |
0.66 |
|
