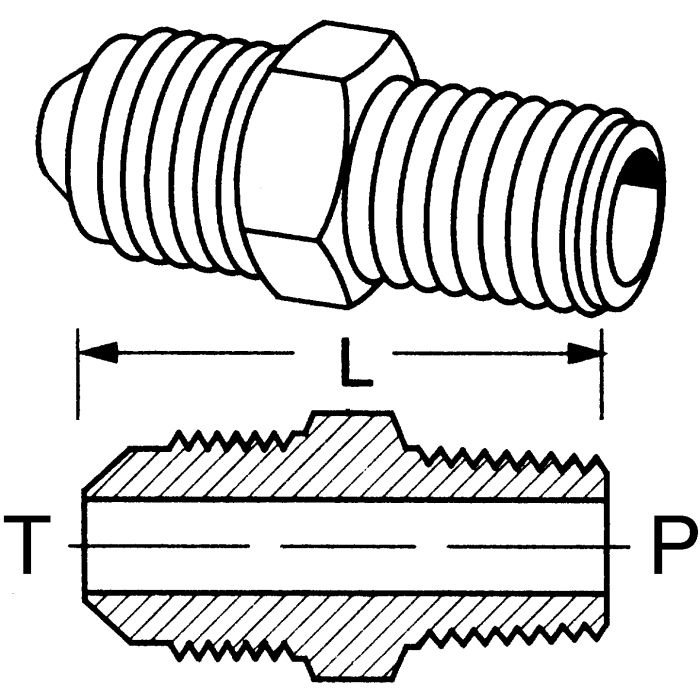

Brass Adapters, Male NPT To Male SAE 45 deg Flare, Straight

Description & Features

Model Number	Tube O.D.	Thread 1	Thread 2	L
48X4 Brass Male NPT To SAE 45 deg Adapter	0.25	1/8-27	7/16-20	1.06
48X10 Brass Male NPT To SAE 45 deg Adapter	0.63	1/2-14	7/8-14	2
48X10X6 Brass Male NPT To SAE 45 deg Adapter	0.63	3/8-18	7/8-14	1.81
48X12 Brass Male NPT To SAE 45 deg Adapter	0.75	1/2-14	1-1/16-14	2.18
48X12X12 Brass Male NPT To SAE 45 deg Adapter	0.75	3/4-14	1-1/16-14	2.18
48X3 Brass Male NPT To SAE 45 deg Adapter	0.19	1/8-27	3/8-24	1
48X4X4 Brass Male NPT To SAE 45 deg Adapter	0.25	1/4-18	7/16-20	1.26
48X5 Brass Male NPT To SAE 45 deg Adapter	0.31	1/8-27	1/2-20	1.16
48X5X4 Brass Male NPT To SAE 45 deg Adapter	0.31	1/4-18	1/2-20	1.34
48X6 Brass Male NPT To SAE 45 deg Adapter	0.38	1/4-18	5/8-18	1.44
48X6X6 Brass Male NPT To SAE 45 deg Adapter	0.38	3/8-18	5/8-18	1.44
48X6X8 Brass Male NPT To SAE 45 deg Adapter	0.38	1/2-14	5/8-18	1.69
48X8 Brass Male NPT To SAE 45 deg Adapter	0.5	3/8-18	3/4-16	1.62
48X8X4 Brass Male NPT To SAE 45 deg Adapter	0.5	1/4-18	3/4-16	1.62
48X8X8 Brass Male NPT To SAE 45 deg Adapter	0.5	1/2-14	3/4-16	1.81
