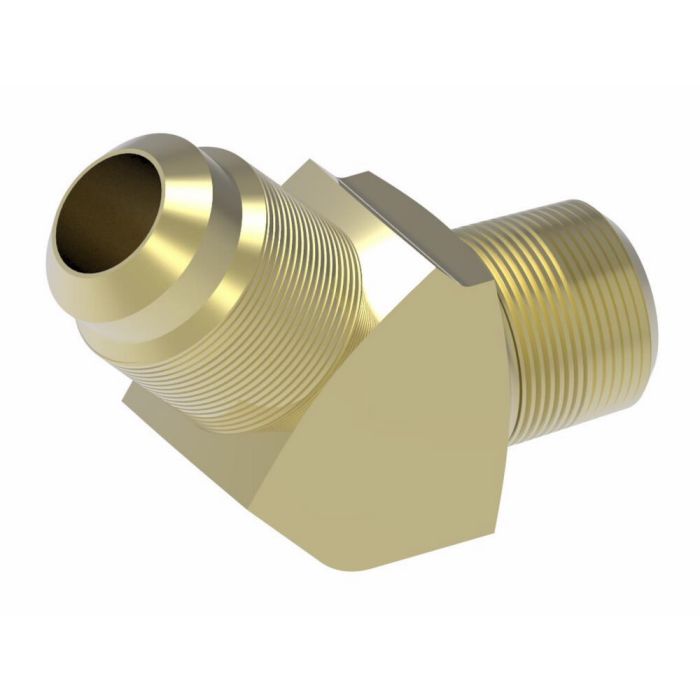

main product photo

Brass Adapter, 1/8-27 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow

Ask A Question

Description & Features

Constructed from brass, this 45-degree elbow adapter connects 1/8-27 Male NPT threads to 7/16-20 Male SAE 45-degree flare, making it a practical solution for routing lines at an angle in space-constrained installations. The Brass Adapter, 1/8-27 Male NPT To 7/16-20 Male SAE 45 Deg Flare, 45 Deg Elbow is an Eaton Aeroquip product cataloged under number C1HQ54.

Suited for a wide range of fluid and gas service, this fitting is used in hydraulic and pneumatic systems, refrigeration circuits, instrumentation, power steering, and LP and natural gas applications. The brass construction offers reliable corrosion resistance across these varied media. Flammable liquid service is available as a special order.

SKU: 54X4

Supplier Part Number (MPN): 54X4

Alternate Part Numbers: C1HQ54, MI-00333297, MINO-00925F73096

Specifications

Alternate Part Numbers
Alternate Part Number C1HQ54, Alternate Part Number MI-00333297, Alternate Part Number MINO-00925F73096
Application
LP and natural gas,
flammable liquids (special
order), instrumentation,
refrigeration, power
steering, hydraulic and
pneumatic systems.
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.13
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE
M
0.67
Minimum Working Temperature
-65
N
0.64
Supplier Part Number
54X4
Thread 1
1/8-27
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.04 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 M N Price Action
Brass Adapter, 1/2-14 Male NPT To 7/8-14 Male SAE 45 deg Flare, 45 deg Elbow

54X10 Brass Male NPT To SAE 45 deg Elbow

0.63

1/2-14

7/8-14

1.23

1.17

Brass Adapter, 1/8-27 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow

54X4 Brass Male NPT To SAE 45 deg Elbow

0.25

1/8-27

7/16-20

0.67

0.64

Brass Adapter, 1/4-18 Male NPT To 5/8-18 Male SAE 45 deg Flare, 45 deg Elbow

54X6 Brass Male NPT To SAE 45 deg Elbow

0.38

1/4-18

5/8-18

0.89

0.86

Brass Adapter, 3/8-18 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

54X8 Brass Male NPT To SAE 45 deg Elbow

0.5

3/8-18

3/4-16

1.06

0.95

Brass Adapter, 1/2-14 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

54X8X8 Brass Male NPT To SAE 45 deg Elbow

0.5

1/2-14

3/4-16

1.12

1.17

Product Questions & Answers (2)

Question by: Lance G on Nov 24, 2025, 8:27 PM
what all can this brass elbow be used on? asking cause i got a mix of pneumatic and hydraulic lines i'm trying to sort out
Answer by: Customer Support on Nov 26, 2025, 6:13 AM
Quite a few systems fall within its range. LP gas, natural gas, refrigeration, power steering, instrumentation, hydraulic, and pneumatic systems are all listed applications for this fitting. The 1/8-27 male NPT side threads into standard pipe fittings, and the 7/16-20 male SAE 45-degree flare end connects to matching flare fittings on the other side. The 45-degree elbow angle gives you some routing flexibility when you're working in a tight spot.
Question by: Dustin C on Feb 2, 2026, 4:37 PM
Will this fitting work okay for hooking up a propane line?
Answer by: Customer Support on Feb 4, 2026, 10:37 AM
This adapter is listed as being suitable for LP and natural gas applications, so it should work for your propane line. Just be sure to check your local codes and regulations for propane installations.
